Vehicle Positioning System Interface Control Module -J843-, REMOVING AND INSTALLING

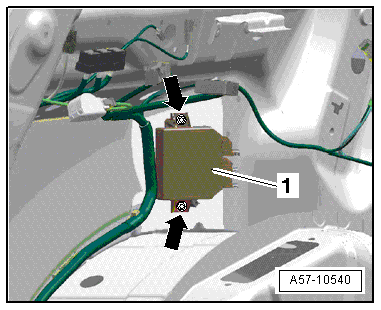

Fig 1: Removing Vehicle Positioning System Interface Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Open the left luggage compartment side trim panel.

-- Disconnect the control module connectors.

-- Remove nuts -arrows- and remove the control module.
