Access/Start Authorization Switch -E415-

Component Location

In The Center Console, Beside Right Steering Wheel -1-

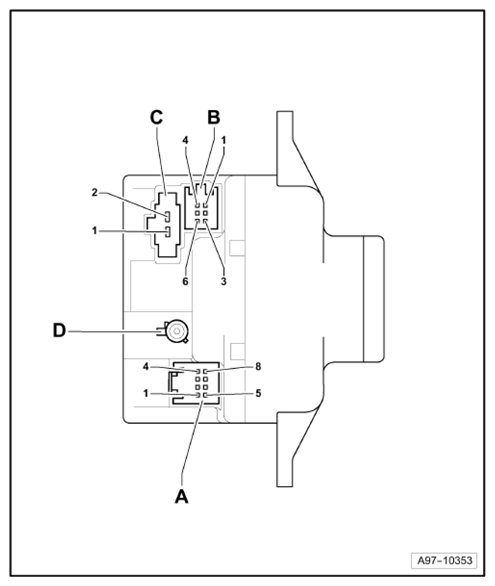

Pin Connectors

Courtesy of AUDI OF AMERICA, LLC

1. 8-Pin Connector -T8A-, Black
2. 6-Pin Connector -T6A-, Black
3. Double Connector -T2A-, Black
4. Antenna Connection

Courtesy of AUDI OF AMERICA, LLC
