Navigation System With Cd Drive Control Module -J401-, Removing And Installing, Basic Plus: Removing

-- Insert two clips from the Radio Removal Tool:T10057  into release slots on Navigation System with CD Drive Control Module -J401- until they engage. Points on the grip eyelets of tool face outward.

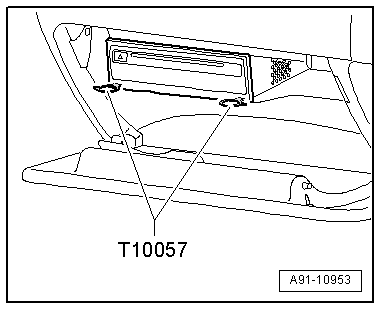

Fig 1: Insert Two Clips Of T10057 Into Release Slots Of Navigation System With CD Drive Control Module Until They Engage

Courtesy of AUDI OF AMERICA, LLC

-- Pull Navigation System with CD Drive Control Module -J401- out of mounting frame.

-- Release and disconnect all connectors from the Navigation System with CD Drive Control Module -J401-.

-- Insert the Fiber-Optic Repair Set - Connector Protective Caps:VAS6223/9  -1- onto the MOST Bus connector -2-.

Fig 2: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of AUDI OF AMERICA, LLC

-- Remove Radio Removal Tool:T10057  by pressing locking tabs on Navigation System with CD Drive Control Module -J401-.
