Digital Sound System Control Module -J525-, Removing And Installing, MMI, From 11 / 03 / 2008: Removing

-- Open the left storage compartment in the luggage compartment

-- Disconnect all of the connectors from the Digital Sound System Control Module -J525-.

-- Insert The Fiber-Optic Repair Set - Connector Protective Caps:VAS6223 / 9  -1- Onto The MOST Bus Connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223 / 9

Courtesy of AUDI OF AMERICA, LLC

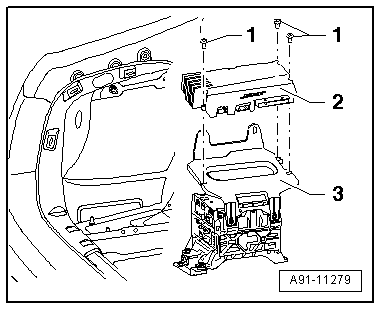

-- Remove The Bolts -1- From The Digital Sound System Control Module -J525- -2- And Remove The Digital Sound System Control Module -J525- -2- From The Bracket -3-.

Fig 2: Identifying Bolts At Digital Sounds System Module, Removal

Courtesy of AUDI OF AMERICA, LLC
