Comfort System Central Control Module -J393-, Removing And Installing: Removing

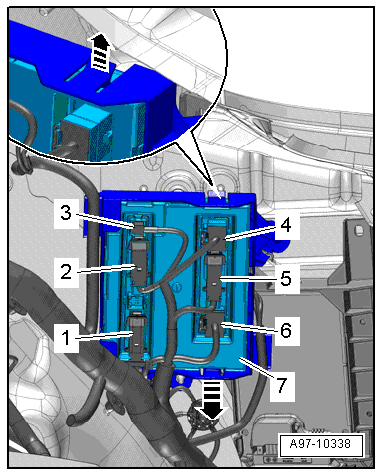

Fig 1: Removing Comfort System Central Control Module

Courtesy of AUDI OF AMERICA, LLC

-- Open the right luggage compartment side trim panel.

-- Open the clips -arrows- and remove the Comfort System Central Control Module -J393- -7- from the retainer.

-- Carefully disconnect connectors -4 and 6- and the antenna connector -3-.

-- Disconnect the connectors -1, 2 and 5-.

-- To disconnect the connector, press the retainer -1-, turn the bracket in direction of -arrow- and disconnect the connector.

Fig 2: Catch And Retainer

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Comfort System Central Control Module -J393-.
