Overview - Generator, Valeo Through My 2000

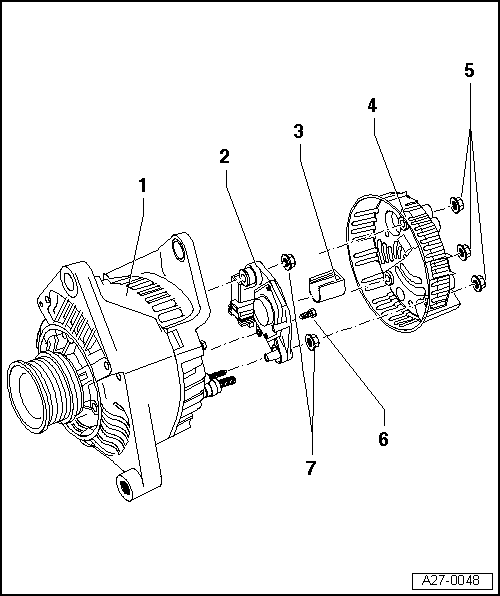

Fig 1: Identifying Valeo Generator Components (Through MY 2000)
GWWA27-0048Courtesy of AUDI OF AMERICA, LLC
  1. Generator
  2. Voltage Regulator
    • Removing:

      -- Remove the nuts -item 5- and the cover -item 4-.

      -- Remove the bolt -item 6- and the nuts -item 7- and remove the voltage regulator.

    • Carbon brushes wear limit: 5 mm
  3. Protective Cap
  4. Cover
  5. Nut
    • 2 Nm
  6. Bolt
    • 2 Nm
  7. Nut
    • 3.5 Nm
    • Quantity: 2
