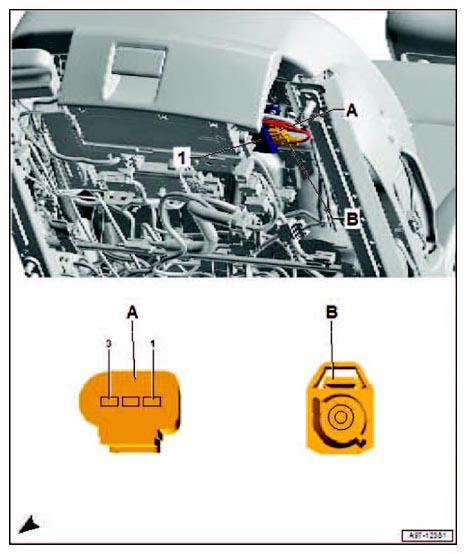

Seat Occupied Recognition Control Module Connector End View (J706, T3, G452)
| 1 | Seat Occupied Recognition Control Module -J706- |
| A | 3-Pin Connector -T3-, black |
| B | Connection Seat Occupied Recognition Pressure Sensor -G452- |
| -T3-(A) | Designation |
| 1 | Terminal 30, from (B282) Positive connection 6 (15a) in main wiring harness Fuse Panel B -SB- |
| 2 | Airbag Control Module -J234- |
| 3 | Terminal 31, to (312) Ground Connection 2 (in airbag wiring harness) (475) Airbag Ground Connection (in main wiring harness) Airbag Control Module -J234- |
