Left Rear Door Control Module Connector End View (J388, T16n, T20g)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Left Rear Door Control Module Connector End View (J388, T16n, T20g)

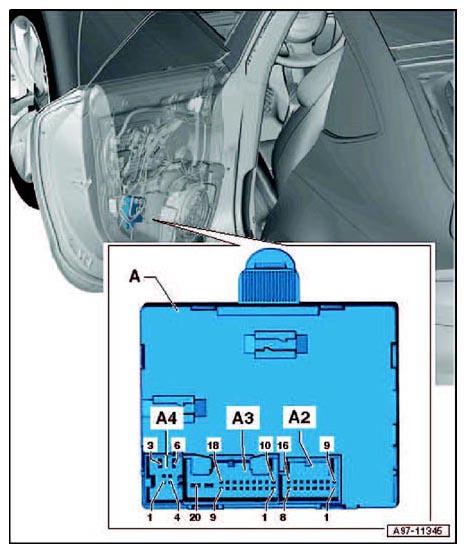

Fig 1: Left Rear Door Control Module Connector End View (J388, T16n, T20g)
Courtesy of AUDI OF AMERICA, LLC
A
Left Rear Door Control Module -J388-
A2
16-Pin Connector -T16n-, black
A3
20-Pin Connector -T20g-, black
A4
Not used
