Level Control System Control Module Connector End View (J197, T9a, T18a, T15a, T12r, T6w)

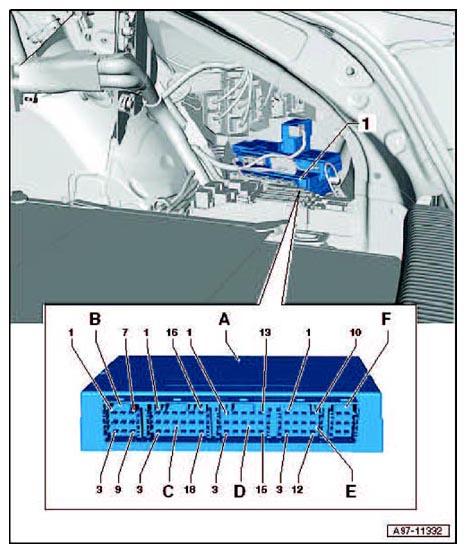

Fig 1: Level Control System Control Module Connector End View (J197, T9a, T18a, T15a, T12r, T6w)
Courtesy of AUDI OF AMERICA, LLC
A
Level Control System Control Module -J197-
B
9-Pin Connector -T9a-, grey
C
18-Pin Connector -T18a-, grey
D
15-Pin Connector -T15a-, purple
E
12-Pin Connector -T12r-, green
F
6-Pin Connector -T6w-, blue
