Steering Column, Handling And Transporting
WARNING:
- The correct handling of the steering column must always be observed.
- Incorrect handling of steering column may cause damage to steering column and therefore lead to a safety risk.

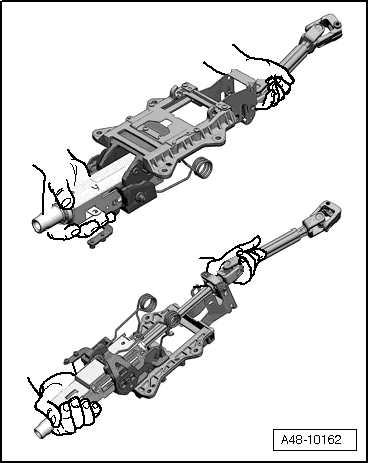

Correct Handling and Transport Of Steering Column
- Transport steering column using two hands.
- Hold steering column at upper steering rod tube and in area of upper universal joint.

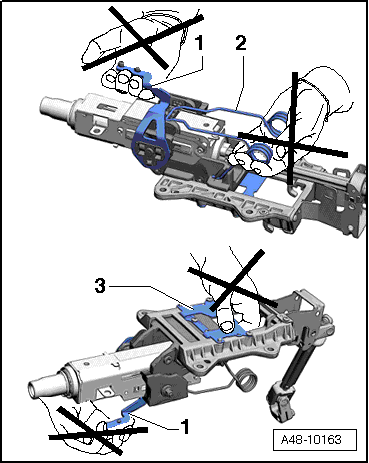

Incorrect Handling of Steering Column
Transporting at the following components leads to pre-damage to steering column:
- Clamping Lever
- Weight Compensation Springs
- Deformation Element

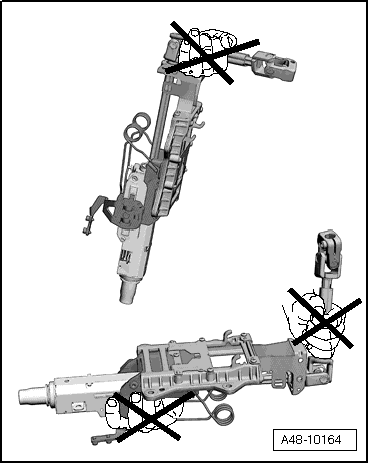

The lower steering column mount universal bushings damaged by:
- Holding and carrying the steering column with a hand on the connecting shaft
- Bending the joint more than 90°
