Overview - Windshield Washer And Wiper System, Headlamp Washer System

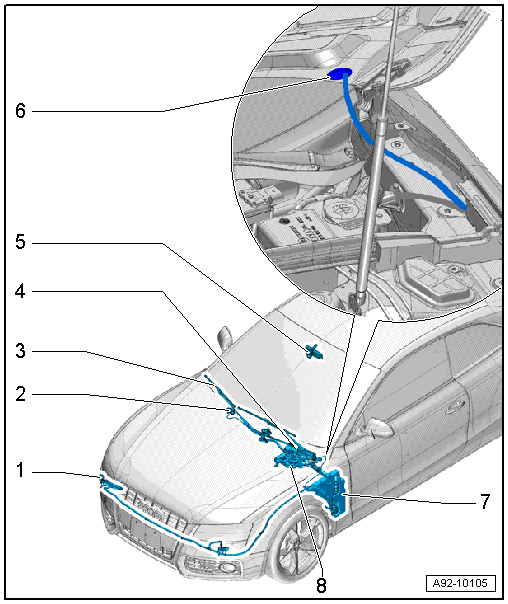

Fig 1: Headlamp Washer And Windshield Wiper, Washer System Overview

Courtesy of AUDI OF AMERICA, LLC

1. Headlamp Washer System Spray Nozzle
   • Overview. Refer to OVERVIEW - HEADLAMP WASHER SYSTEM .
2. Spray Nozzle
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
3. Wiper Arm
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
4. Windshield Wiper Motor -V-
   • With Wiper Motor Control Module -J400-
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
5. Rain/Light Recognition Sensor -G397-
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM, RAIN/LIGHT RECOGNITION SENSOR .
6. Grommet
   • For the windshield washer fluid hose inside the hood
7. Windshield Washer Fluid Reservoir
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
8. Filler Tube
   • For the windshield washer fluid reservoir
   • Overview. Refer to OVERVIEW - WINDSHIELD WASHER SYSTEM .
