Garage Door Opener Control Module Connector End View (J530, T4r)

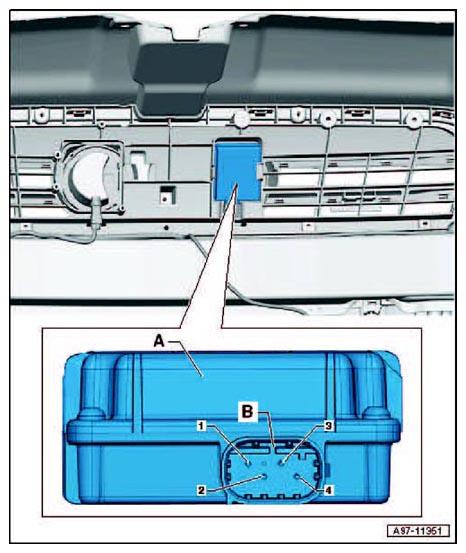

Fig 1: Garage Door Opener Control Module Connector End View (J530, T4r)
Courtesy of AUDI OF AMERICA, LLC
A
Garage Door Opener Control Module -J530-
B
4-Pin Connector -T4r-, black
