Rear Brakes Technical Data

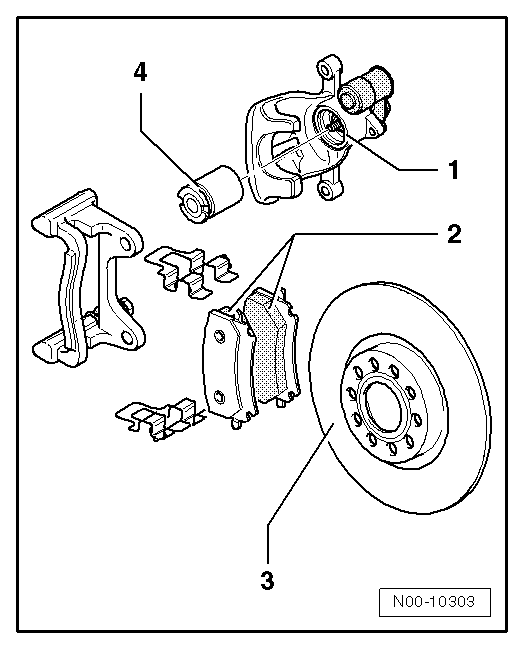

| Item | PR Number | 1KU | 2EA, 2EJ. GP1 | |
|---|---|---|---|---|
| 1 | Brake caliper | TRW CII 41 (16") | TRW CII41 (17") | |
| 3 | Brake rotor, not ventilated | diameter in mm | 282 | - |
| Brake rotor ventilated | diameter in mm | - | 310 | |
| New thickness, not ventilated | mm | 12 | - | |
| New thickness, ventilated | mm | - | 22 | |
| Brake rotor wear limit | mm | 10 | 20 | |
NOTE:
Maximum lateral run-out of steel brake rotor = 0.06 mm
Measurement in installed brake rotor
Use Dial Indicator Bracket - VAS6079/1; Dial Indicator - 0-10mm - VAS6079.
Clean dirt and rust off the brake rotor.
Measure 10 mm away from the outer edge of the brake rotor.
- Allocation. Refer to the Parts Information .
- Wear limits for the brake pads.
