Electronic Steering Column Lock Control Module -J764-, REMOVING AND INSTALLING: Installing

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

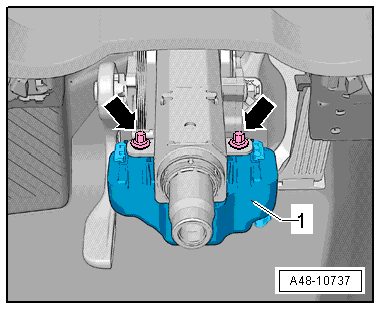

-- Secure the Electronic Steering Column Lock Control Module -J764- -1- with new shear bolts -arrows-.

-- Tighten the shear bolts -arrows- evenly until the bolt heads shear off.

-- Install the steering wheel. Refer to STEERING WHEEL, REMOVING AND INSTALLING .

-- If the Electronic Steering Column Lock Control Module -J764- was replaced, then the Electronic Steering Column Lock Control Module -J764- must be adapted by selecting the function "Replace" on the Vehicle Diagnostic Tester in the "Guided Functions".

-- Perform a basic setting on the Steering Angle Sensor -G85- using the Vehicle Diagnostic Tester.

-- Follow the instructions on the screen.
