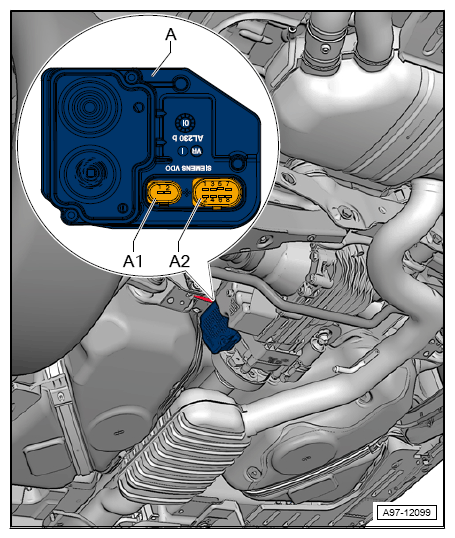

All-Wheel Drive Control Module -J492-, Connector View

DOUBLE CONNECTOR -T2AX-/8-PIN CONNECTOR -T8Y-

  1. A1  - Double Connector -T2Ax-, Black
  2. A2  - 8-Pin Connector -T8Y-, Black
G12775423Courtesy of AUDI OF AMERICA, LLC
