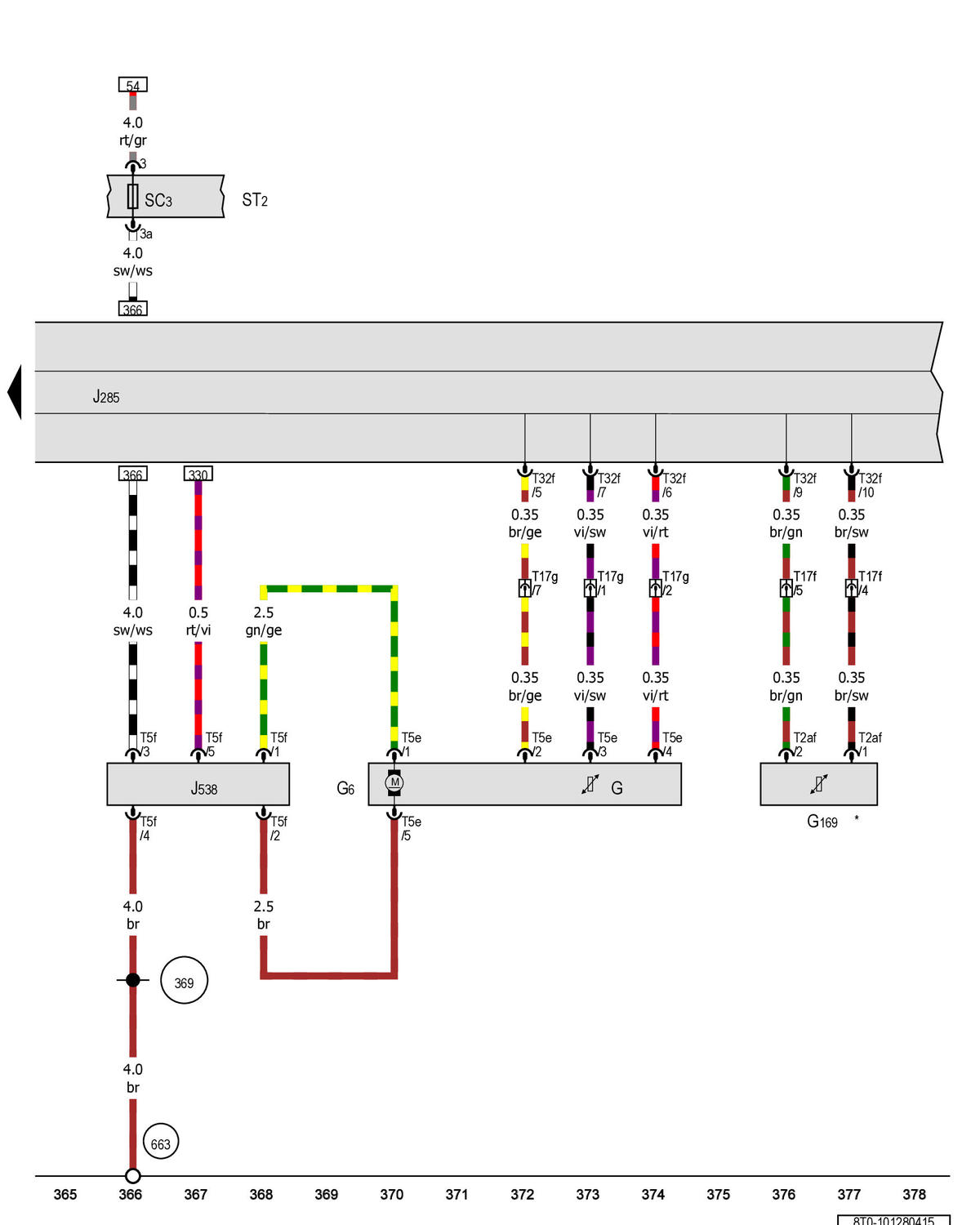

Fuel Level Sensor, Transfer Fuel Pump, Instrument Cluster Control Module, Fuel Pump Control Module: Notes

GWW8T0-101280415Courtesy of AUDI OF AMERICA, LLC
