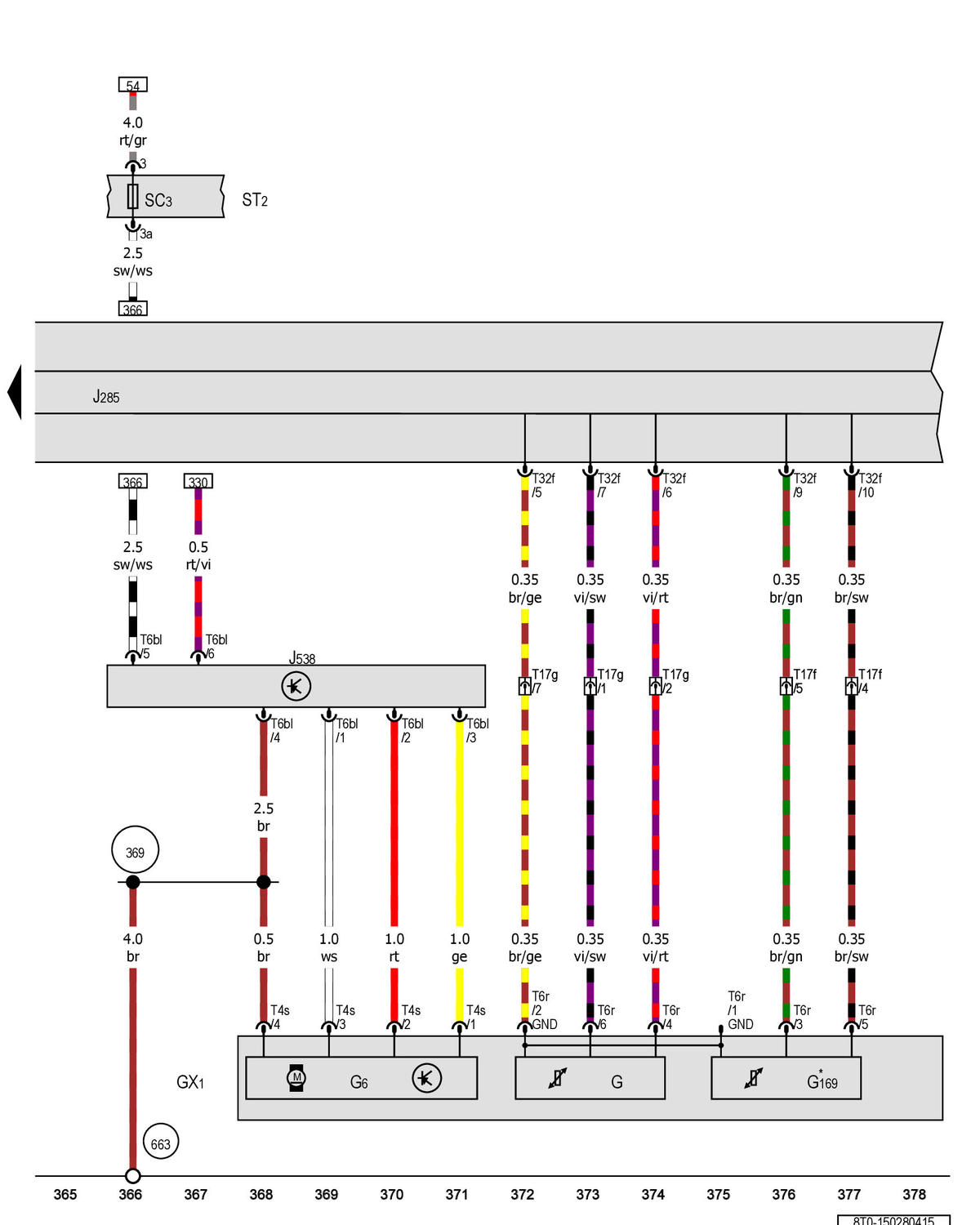

Fuel Delivery Unit, Instrument Cluster Control Module, Fuel Pump Control Module: Notes

GWW8T0-150280415Courtesy of AUDI OF AMERICA, LLC
