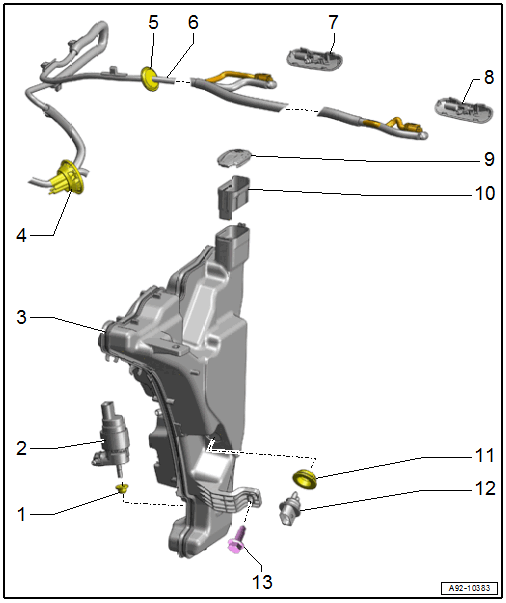

Overview - Windshield Washer System
WARNING: This page is about a different car, the 2021 Audi S4 and 2021 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Grommet
- Replace if damaged
- Windshield Washer Pump -V5-
- For the front and rear window washer system
- Removing and installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
- Washer Fluid Reservoir
- For front/rear window washer system and headlamp washer system
- Removing and installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Grommet
- For washer fluid hose/wiring harness in the body
- Grommet
- For the washer fluid hose in the hood
- Washer Fluid Hose
- To the washer nozzles
- Right Washer Nozzle
- With Right Washer Nozzle Heater -Z21-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Left Washer Nozzle
- With Left Washer Nozzle Heater -Z20-
- Removing and installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
- Cap
- For the filler neck
- Screen
- Grommet
- Replace if damaged
- Windshield Washer Fluid Level Sensor -G33-
- Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
- Nut/Bolt
- 8 Nm
- Quantity: 2
