Component Location Overview - Navigation System, MMI Navigation Plus, 7T6, Japan

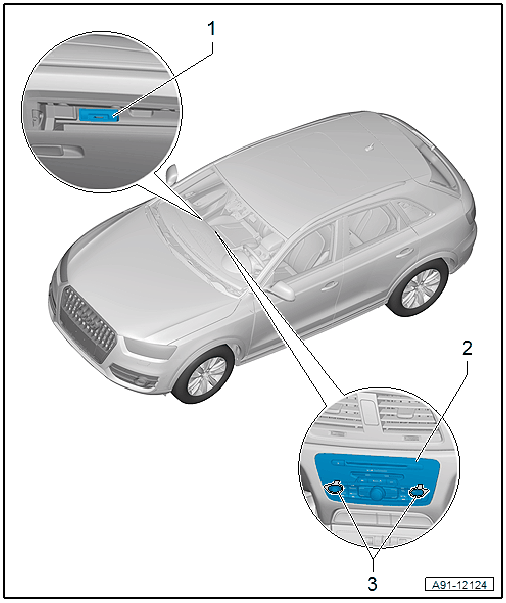

Fig 1: Components Location - Navigation System (MMI Navigation Plus, 7T6, Japan)

Courtesy of AUDI OF AMERICA, LLC

1. Chip Card Reader Control Module -J676-
   • Connector Assignment. Refer to Chip Card Reader Control Module -J676-, CONNECTOR ASSIGNMENT .
   • Removing and installing. Refer to CHIP CARD READER CONTROL MODULE, REMOVING AND INSTALLING .
2. Information Electronics Control Module 1 -J794-
   • MMI navigation plus connector assignment. Refer to CONNECTOR ASSIGNMENT, MMI NAVIGATION PLUS, 7T6 .
   • Removing and installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
3. Radio Removal Tool:T10057
