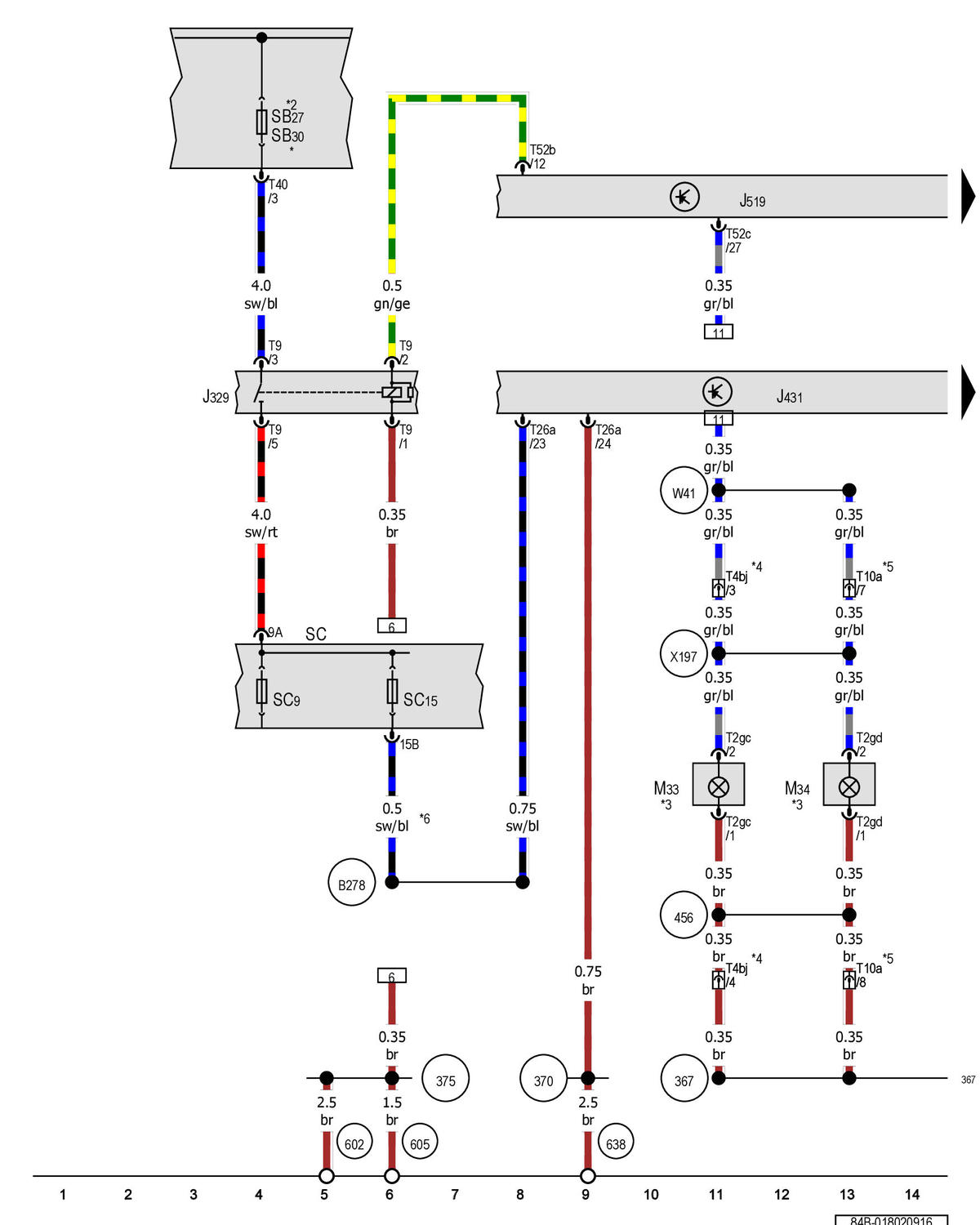

Terminal 15 Power Supply Relay, Headlamp Range Control Module, Vehicle Electrical System Control Module

J329  Terminal 15 power supply relay

J431  Headlamp range control module

J519  Vehicle electrical system control module

M33  Left front side marker lamp bulb

M34  Right front side marker lamp bulb

SC  Fuse panel C

SC9  Fuse 9 (on fuse panel C)

SC15  Fuse 15 (on fuse panel C)

SB27  Fuse 27 (on fuse panel B)

SB30  Fuse 30 (on fuse panel B)

SC  Fuse panel C

T2gc  2-pin connector

T2gd  2-pin connector

T4bj  4-pin connector

T9  9-pin connector

T10a  10-pin connector

T26a  26-pin connector

T40  40-pin connector

T52b  52-pin connector

T52c  52-pin connector

(367) Ground connection 2 (in main wiring harness)

(370) Ground connection 5 (in main wiring harness)

(375) Ground connection 10 (in main wiring harness)

(456) Ground connection 1 (in front bumper wiring harness)

(602) Ground connection in left front footwell

(605) Ground connection on upper steering column

(638) Ground connection on right A-pillar

(B278) Positive connection 2 (15a) (in main wiring harness)

(W41) Positive connection (58) (in license plate lamp wiring harness)

(X197) Connection 1 (in lower front bumper wiring harness)

*  through October 2012

*2  from November 2012

*3  Only for vehicles with US equipment

*4  Depending on equipment

*5  Only for vehicles with park distance control (PDC)

*6  Diameter depends on equipment
