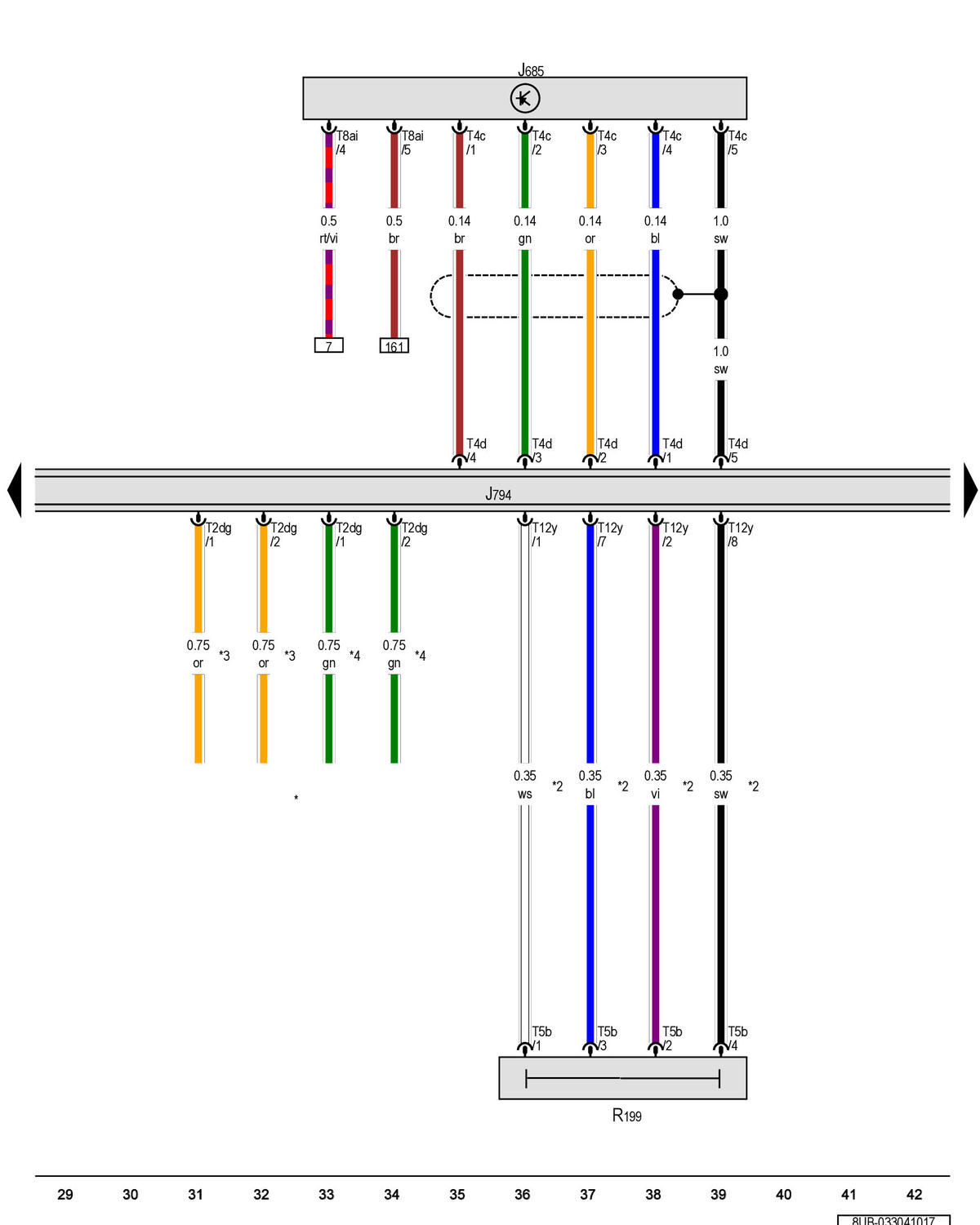

Information Electronics Control Module 1, External Audio Source Connection

Courtesy of AUDI OF AMERICA, LLC

J685  Front Information Display Control Head

J794  Information Electronics Control Module 1

R199  External Audio Source Connection

T2dg  2-Pin Connector

T4c  4-Pin Connector

T4d  4-Pin Connector

T5b  5-Pin Connector

T8ai  8-Pin Connector

T12y  12-Pin Connector

*  Refer to Applicable Wiring Diagram for Infotainment Most Bus

*2  For Vehicles with External Audio Source Connection - AUX-IN Connection

*3  Through April 2014

*4  From May 2014

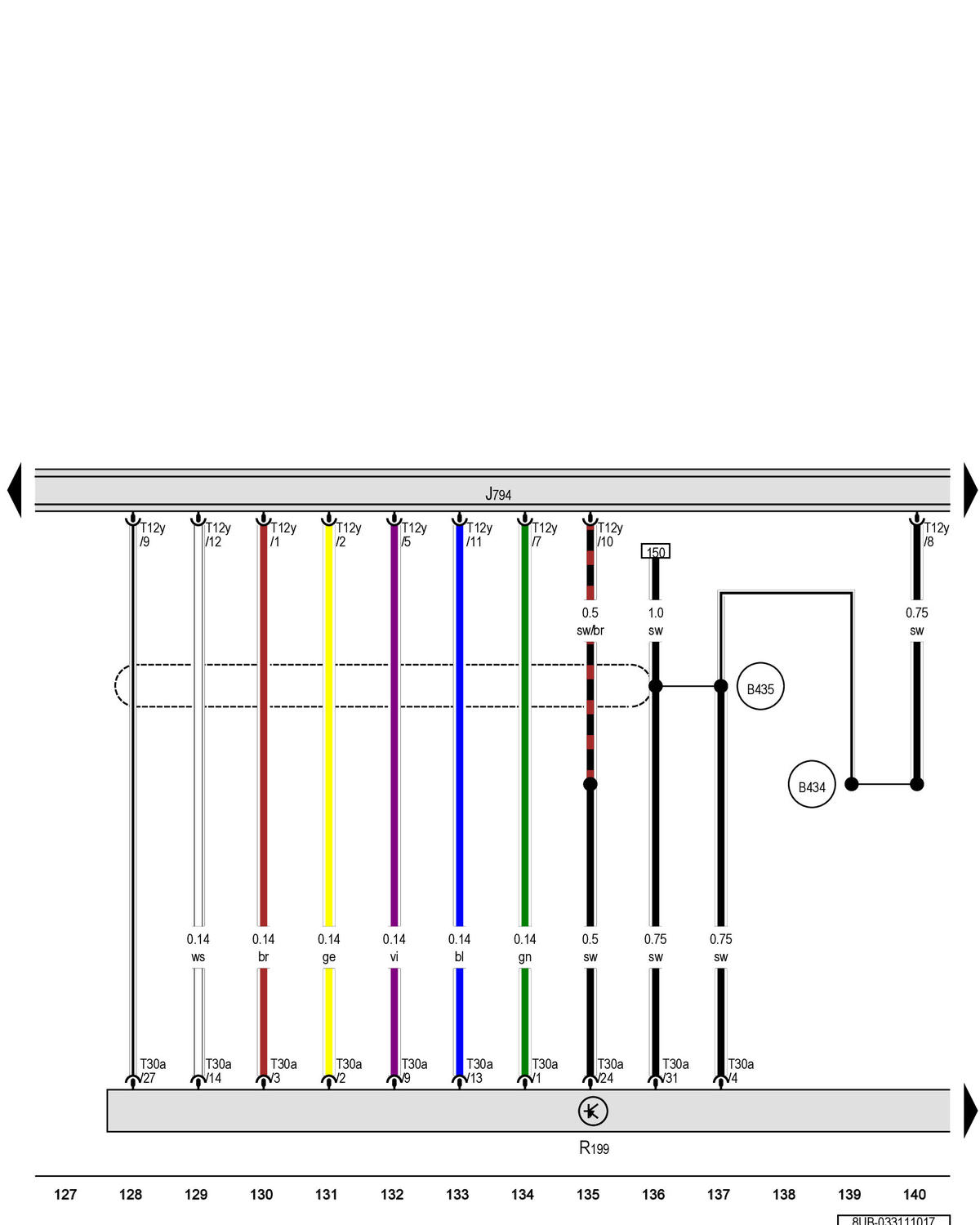

Courtesy of AUDI OF AMERICA, LLC

J794  Information Electronics Control Module 1

R199  External Audio Source Connection

T12y  12-Pin Connector

T30a  30-Pin Connector

(B434) Shielding Connection 1 (in Main Wiring Harness)

(B435) Shielding Connection 2 (in Main Wiring Harness)
