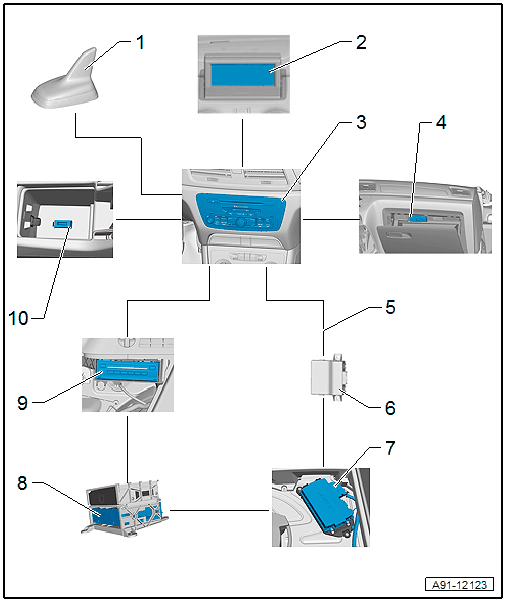

Overview - Navigation System, MMI Navigation Plus, 7T6, Japan
Courtesy of AUDI OF AMERICA, LLC
- Roof Antenna -R216-
- Front Information Display Control Head -J685- in center of the instrument panel
- Information Electronics Control Module 1 -J794- inside the instrument panel
- Chip Card Reader Control Module -J676- inside the glove compartment
- MOST Bus
- Data Bus On Board Diagnostic Interface -J533- behind the driver side left compartment
- Digital Sound System Control Module -J525- in the right rear of the luggage compartment under the luggage compartment floor covering.
- Radio -R- behind the left luggage compartment trim panel
- CD Changer -R41- behind the luggage compartment trim panel on the left side.
- External Audio Source Connection -R199- in the Center Console Storage Compartment
