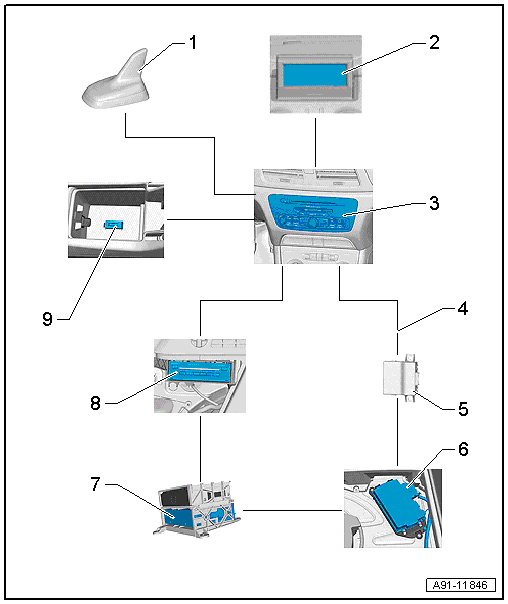

Overview - Navigation System, MMI Navigation Plus, 7T6
Courtesy of AUDI OF AMERICA, LLC
- Roof Antenna -R216-
- Front Information Display Control Head -J685-
- In center of the instrument panel
- Information Electronics Control Module 1 -J794-
- Inside the instrument panel
- MOST Bus
- Data Bus On Board Diagnostic Interface -J533-
- Behind the driver side left compartment
- Digital Sound System Control Module -J525-
- In the right rear of the luggage compartment under the luggage compartment.
- Radio -R-
- In the luggage compartment at the left behind the door
- CD Changer -R41-
- In the luggage compartment at the left behind the door
- External Audio Source Connection -R199-
- In the Center Console Storage Compartment
