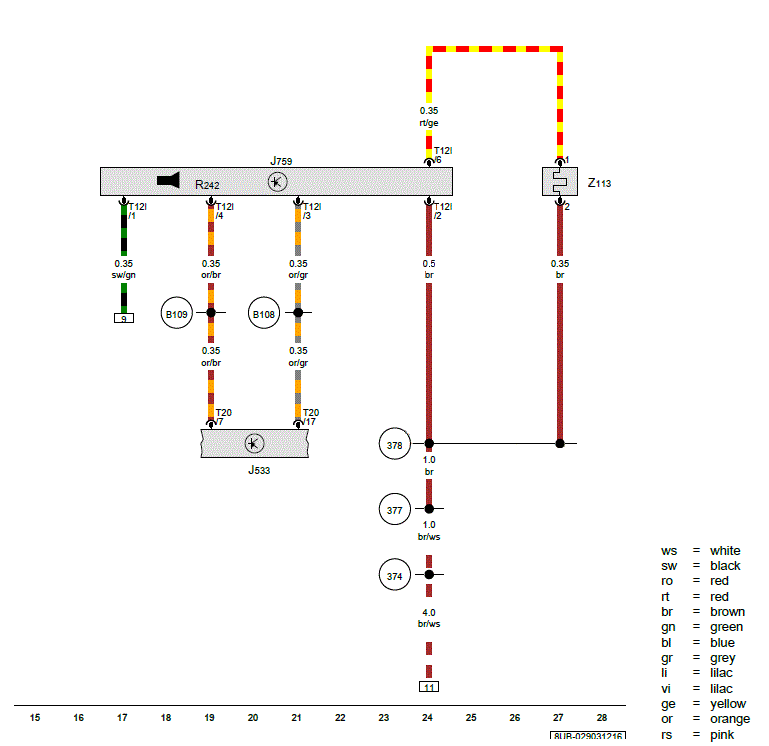

Data Bus On Board Diagnostic Interface, Directional Stabilization Assistance Control Module, Window Defogger For Front Sensor System

J533  Data bus on board diagnostic interface

J759  Directional stabilization assistance control module

R242  Driver assistance systems front camera

T12l  12-pin connector

T20  20-pin connector

Z113  Window defogger for front sensor system

(374) Ground connection 9 (in main wiring harness)

(377) Ground connection 12 (in main wiring harness)

(378) Ground connection 13 (in main wiring harness)

(B108) CAN bus extended high connection 1 (in main wiring harness)

(B109) CAN bus extended low connection 1 (in main wiring harness)
