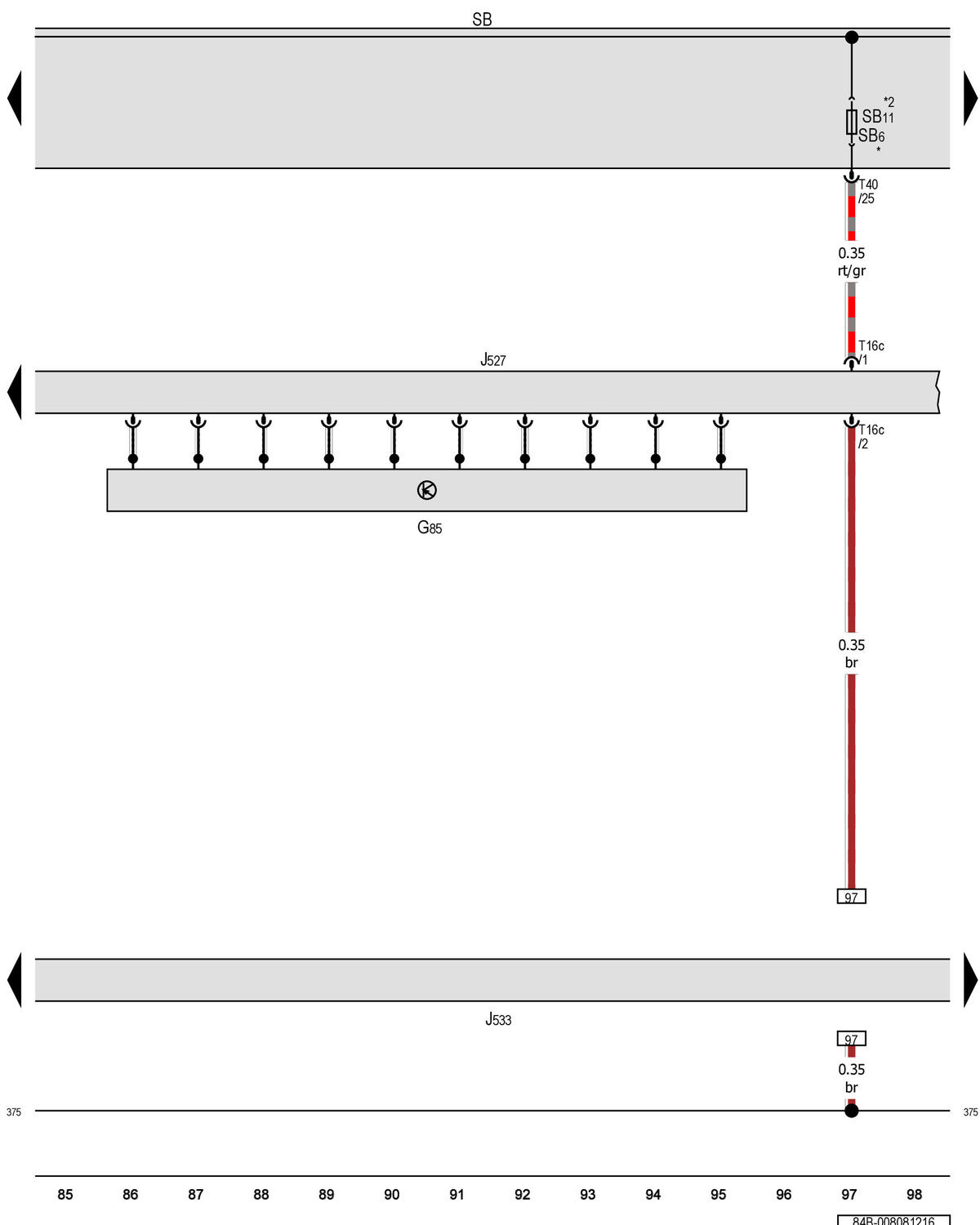

Steering Angle Sensor, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel B

Courtesy of AUDI OF AMERICA, LLC

G85  Steering angle sensor

J527  Steering column electronics control module

J533  Data bus on board diagnostic interface

SB  Fuse panel B

SB6  Fuse 6 (on fuse panel B)

SB11  Fuse 11 (on fuse panel B)

T16c  16-pin connector

T40  40-pin connector

(375) Ground connection 10 (in main wiring harness)

*  through October 2012

*2  from November 2012
