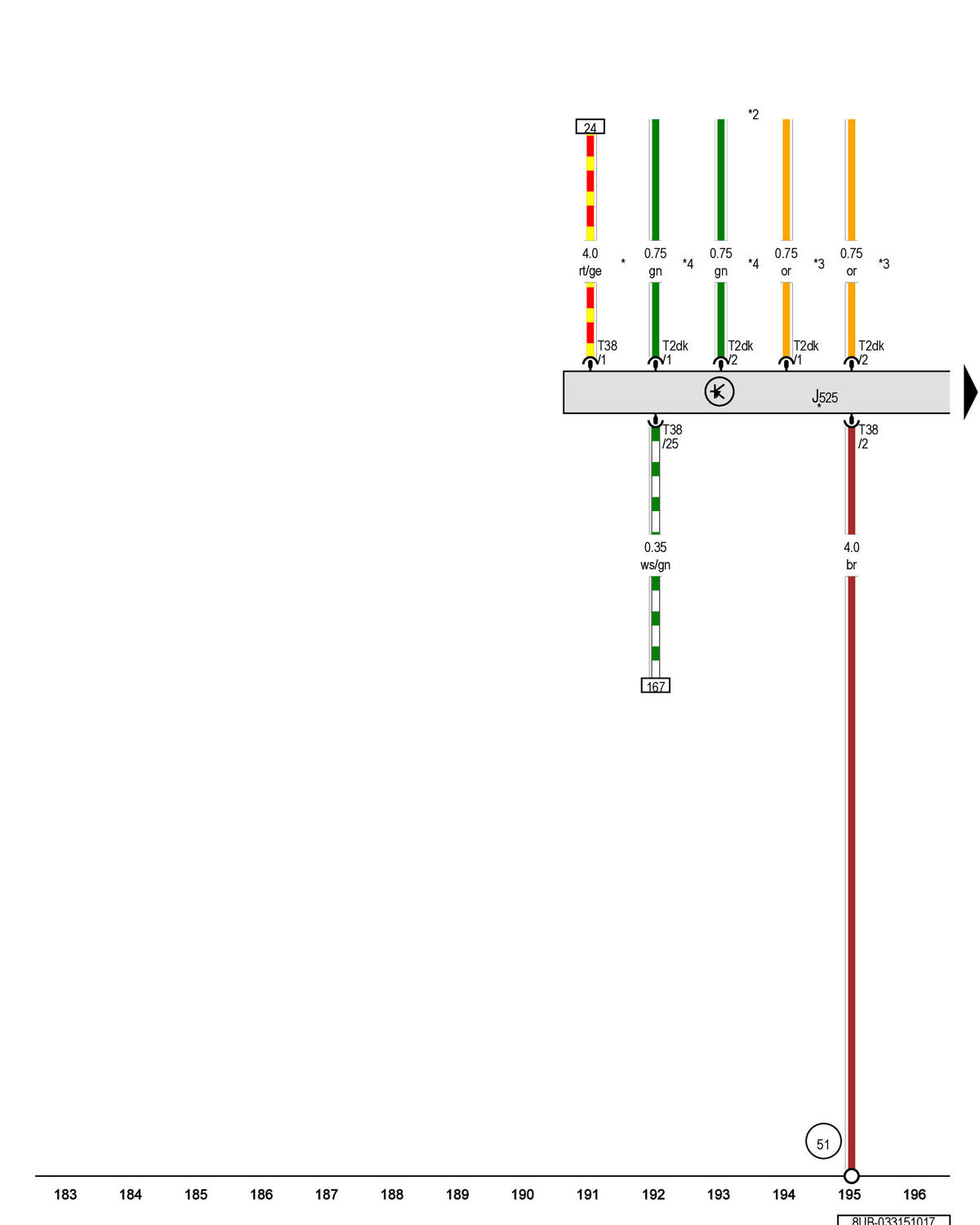

Digital Sound System Control Module

Courtesy of AUDI OF AMERICA, LLC

J525  Digital Sound System Control Module

T2dk  2-Pin Connector

T38  38-Pin Connector

(51)Ground Connection in Luggage Compartment, Right

*  For Vehicles with Bose Sound System

*2  Refer to Applicable Wiring Diagram for Infotainment Most Bus

*3  Through April 2014

*4  From May 2014
