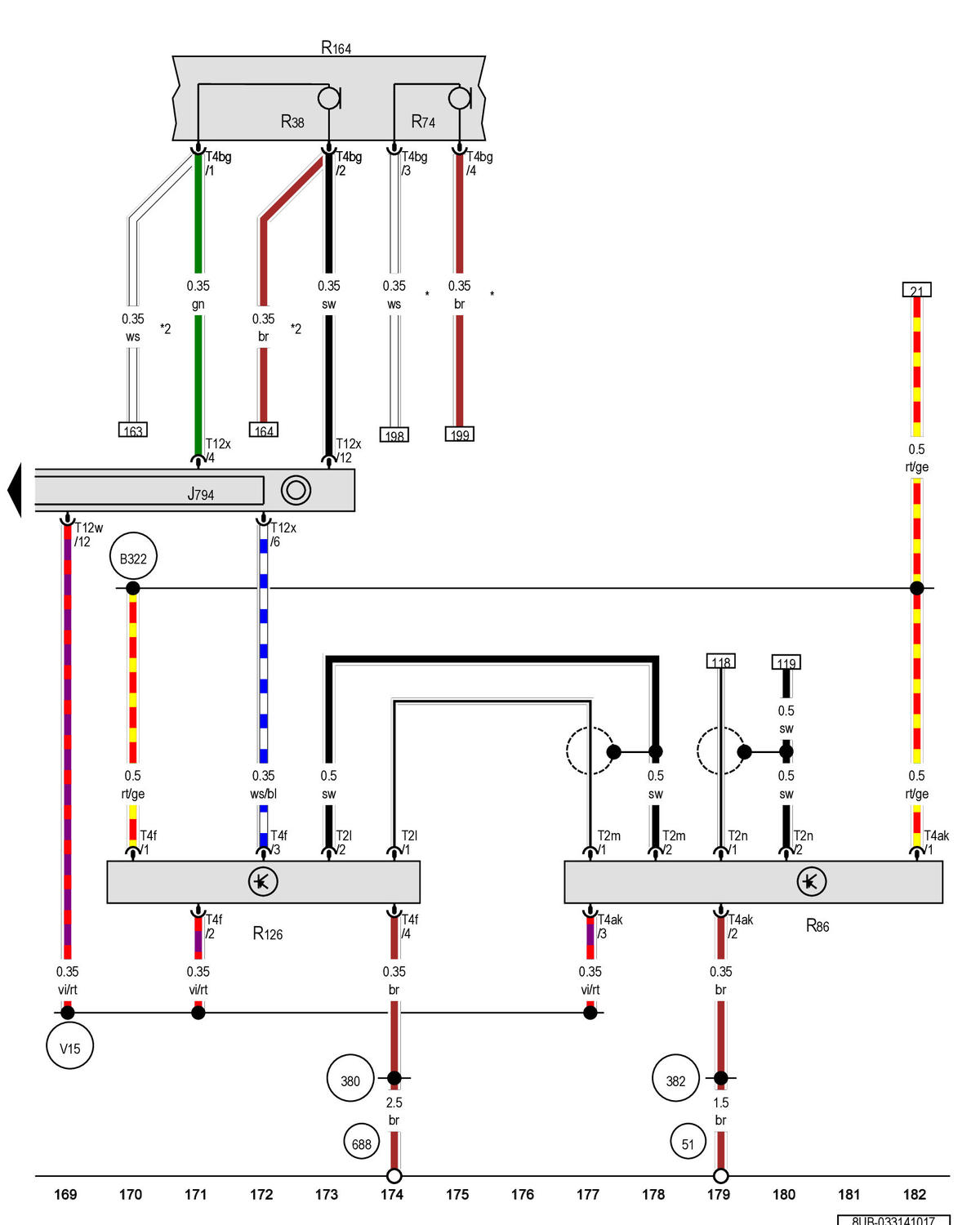

Information Electronics Control Module 1, Cellular Telephone Amplifier, Telephone BASEPLATE, Microphone Unit In Front Roof Module

Courtesy of AUDI OF AMERICA, LLC

J794  Information Electronics Control Module 1

R38  Telephone Microphone

R74  Interior Microphone

R86  Cellular Telephone Amplifier

R126  Telephone Baseplate

R164  Microphone Unit in Front Roof Module

T2l  2-Pin Connector

T2m  2-Pin Connector

T2n  2-Pin Connector

T4ak  4-Pin Connector

T4bg  4-Pin Connector

T4f  4-Pin Connector

T12w  12-Pin Connector

T12x  12-Pin Connector

(51) Ground Connection in Luggage Compartment, Right

(380) Ground Connection 15 (in Main Wiring Harness)

(382) Ground Connection 17 (in Main Wiring Harness)

(688) Ground Connection 2 on Center Tunnel

(B322) Positive Connection 8 (30a) (in Main Wiring Harness)

(V15) Connection (in Telephone Wiring Harness)

*  For Vehicles with Bose Sound System

*2  For Vehicles with Emergency Call Module
