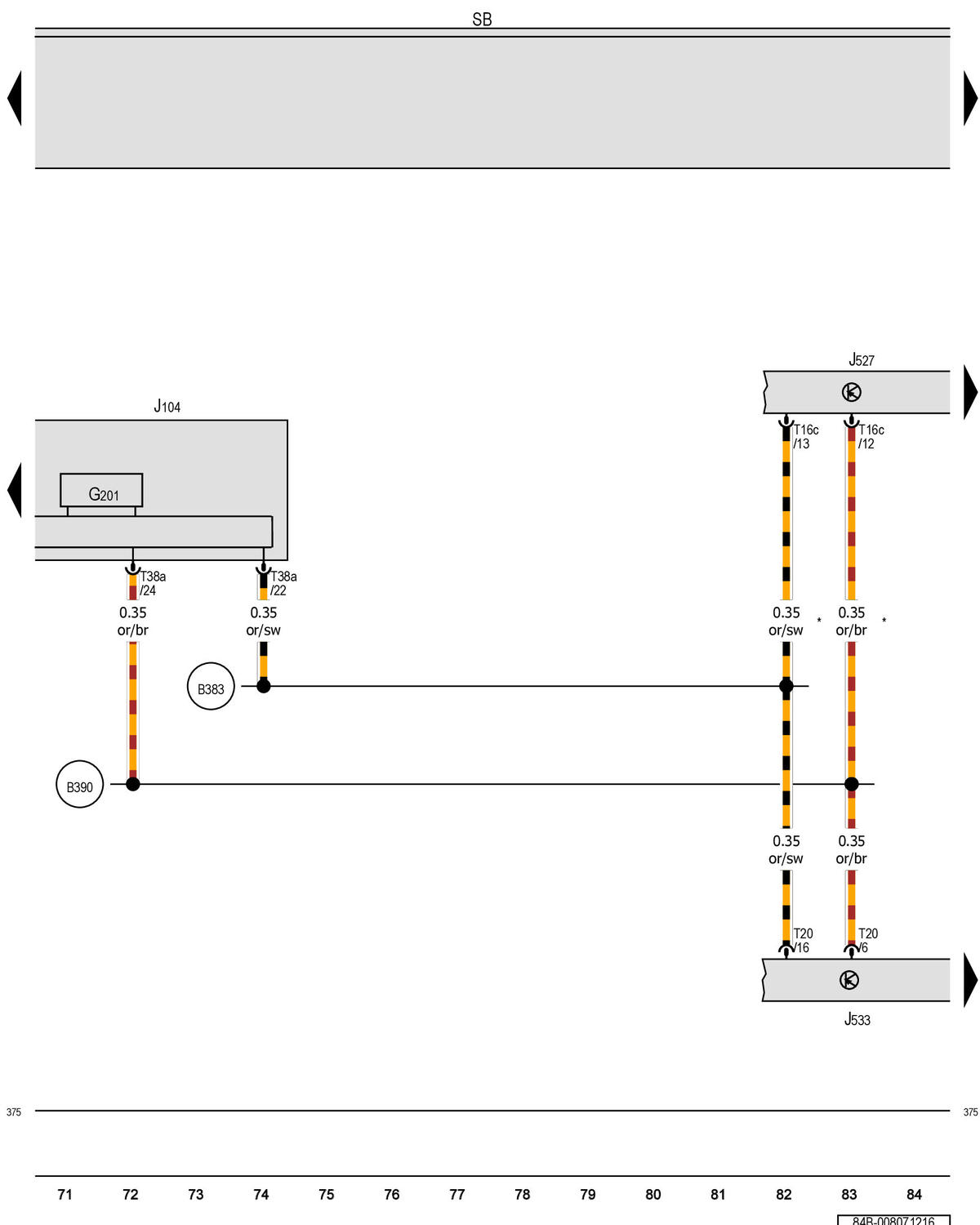

Brake Pressure Sensor 1, Abs Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Fuse Panel B
G201 Brake pressure sensor 1
J104 ABS control module
J527 Steering column electronics control module
J533 Data bus on board diagnostic interface
SB Fuse panel B
T16c 16-pin connector
T20 20-pin connector
T38a 38-pin connector
(375) Ground connection 10 (in main wiring harness)
Powertrain CAN bus high connection 1 (in main wiring harness)
Powertrain CAN bus low connection 1 (in main wiring harness)
* Only for LHD vehicles
