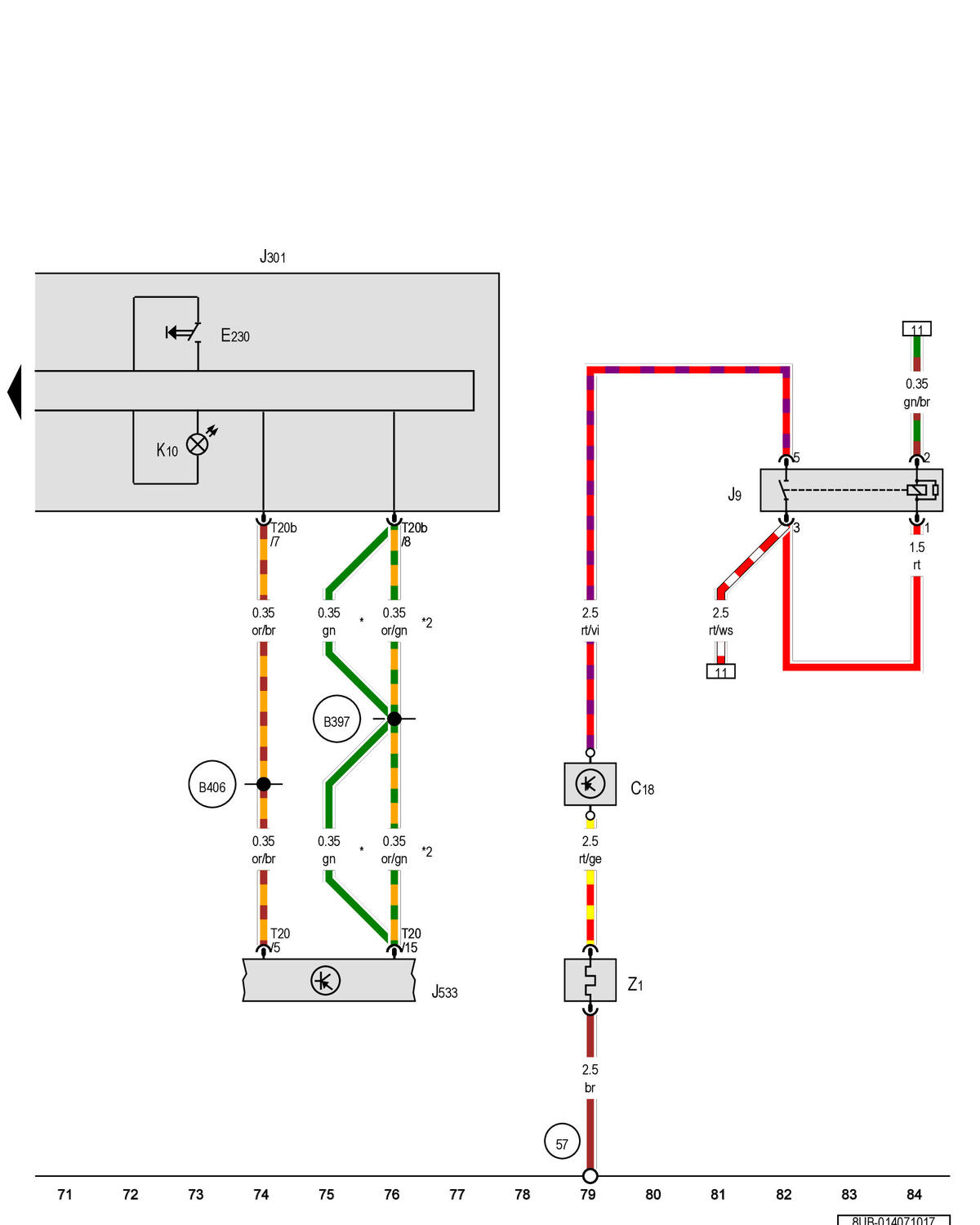

Rear Window Defogger Relay, A/C Control Module, Data Bus On Board Diagnostic Interface, Rear Window Defogger

Courtesy of AUDI OF AMERICA, LLC

C18  Windshield Antenna Suppression Filter Type:BT, Slpdok:, Aim:BTC18

E230  Rear Window Defogger Button

J9  Rear Window Defogger Relay Type:BT, Slpdok:, Aim:BTJ9

J301  A/C Control Module Type:BT, Slpdok:, Aim:BTJ301

J533  Data Bus on Board Diagnostic Interface Type:BT, Slpdok:, Aim:BTJ533

K10  Rear Window Defogger Indicator Lamp

T20  20-Pin Connector

T20b  20-Pin Connector

Z1  Rear Window Defogger

(57) Ground Connection on Left Rear Pillar Type:VB, Slpdok:, Aim:VB57

(B397) Comfort System CAN Bus High Connection 1 (in Main Wiring Harness)

(B406) Comfort System CAN Bus Low Connection 1 (in Main Wiring Harness)

*  From November 2016

*2  Through October 2016
