Access/Start Control Module Connector End View (J518, T32a)
Behind glove compartment.

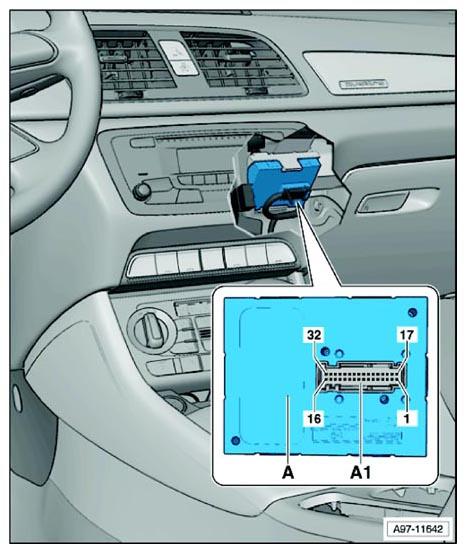

Fig 1: Access/Start Control Module Connector End View (J518, T32a)
Courtesy of AUDI OF AMERICA, LLC
A
Access/Start Control Module -J518-
A1
32-Pin Connector -T32a-, blue
Courtesy of AUDI OF AMERICA, LLC
