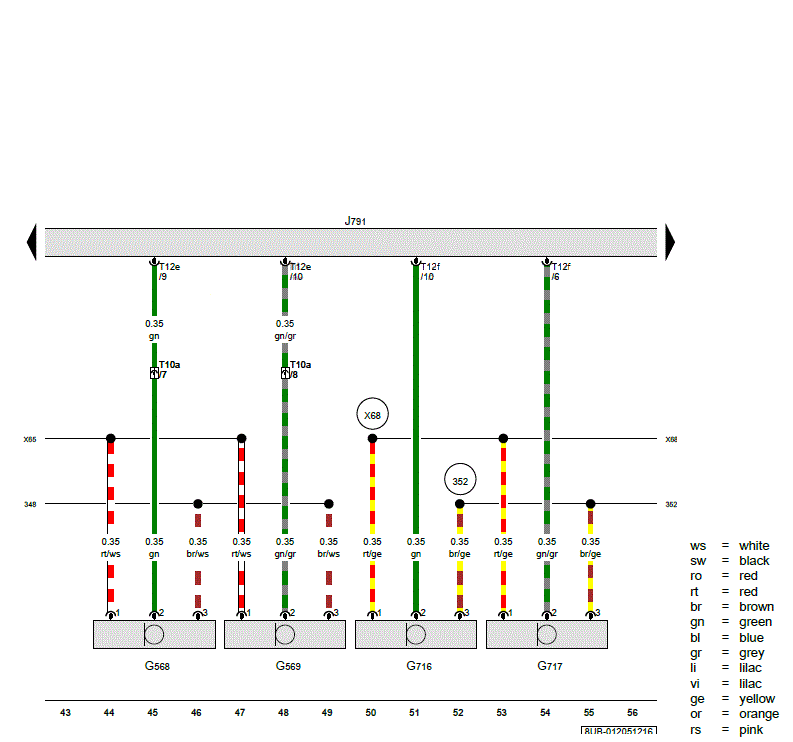

Left Front Parallel Parking Assistance Sensor, Right Front Parallel Parking Assistance Sensor, Left Rear Parallel Parking Assistance Sensor, Right Rear Parallel Parking Assistance Sensor, Parallel Parking Assistance Control Module

G568  Left front parallel parking assistance sensor

G569  Right front parallel parking assistance sensor

G716  Left rear parallel parking assistance sensor

G717  Right rear parallel parking assistance sensor

J791  Parallel parking assistance control module

T10a  10-pin connector, in the front bumper, left

T12e  12-pin connector

T12f  12-pin connector

(348) Parking aid ground connection (in front bumper wiring harness)

(352) Parking aid ground connection (in rear bumper wiring harness)

(X65) Parking aid connection (in front bumper wiring harness)

(X68) Parking aid connection (in rear bumper wiring harness)
