Abs Control Module, Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface, Tire Pressure Monitoring Display Indicator Lamp

Courtesy of AUDI OF AMERICA, LLC

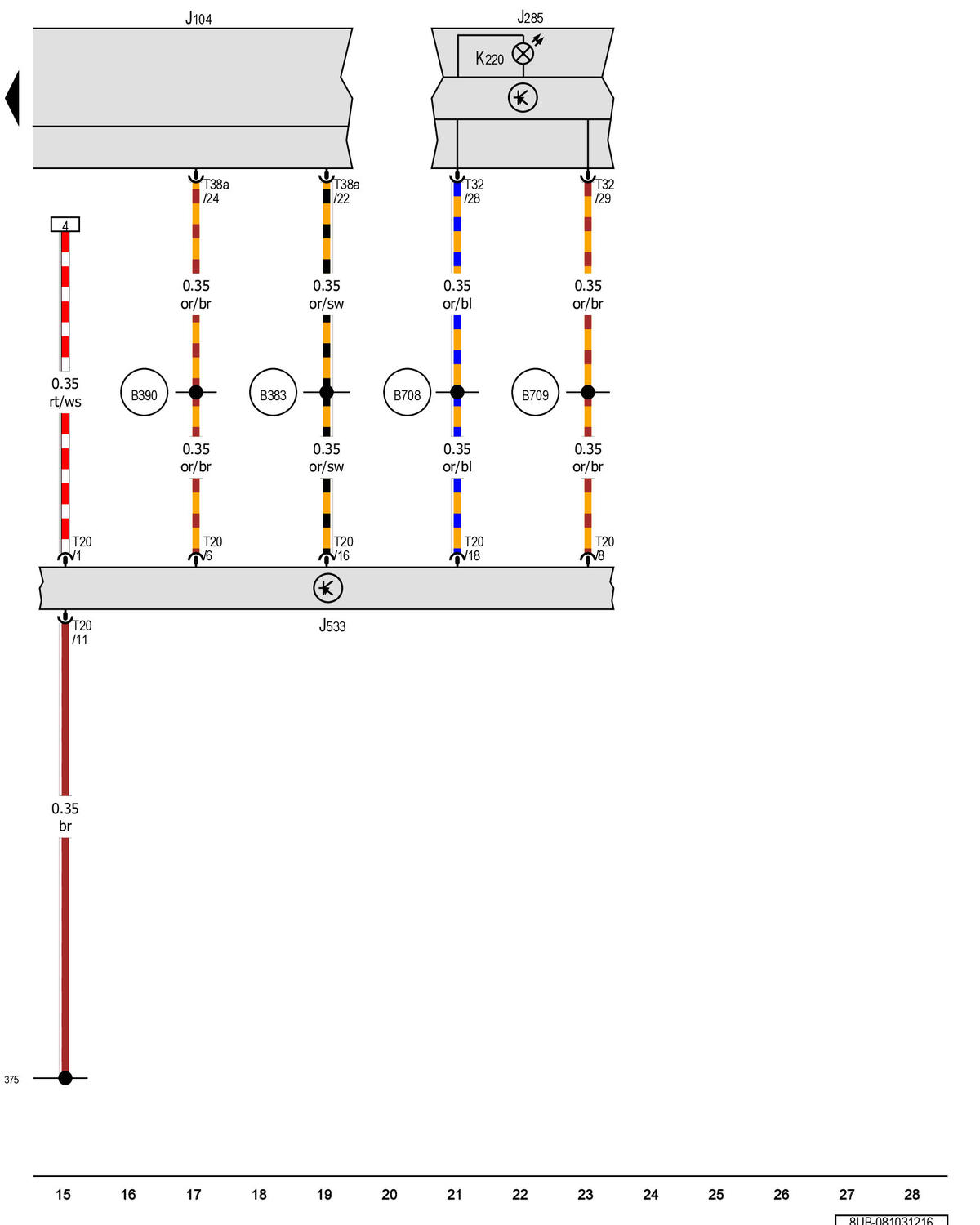

J104  ABS control module

J285  Instrument cluster control module

J533  Data bus on board diagnostic interface

K220  Tire pressure monitoring display indicator lamp

T20  20-pin connector

T32  32-pin connector

T38a  38-pin connector

(375) Ground connection 10 (in main wiring harness)

(B383) Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) Powertrain CAN bus low connection 1 (in main wiring harness)

(B708) Instrument cluster CAN bus high connection 1 (in main wiring harness)

(B709) Instrument cluster CAN bus low connection 1 (in main wiring harness)
