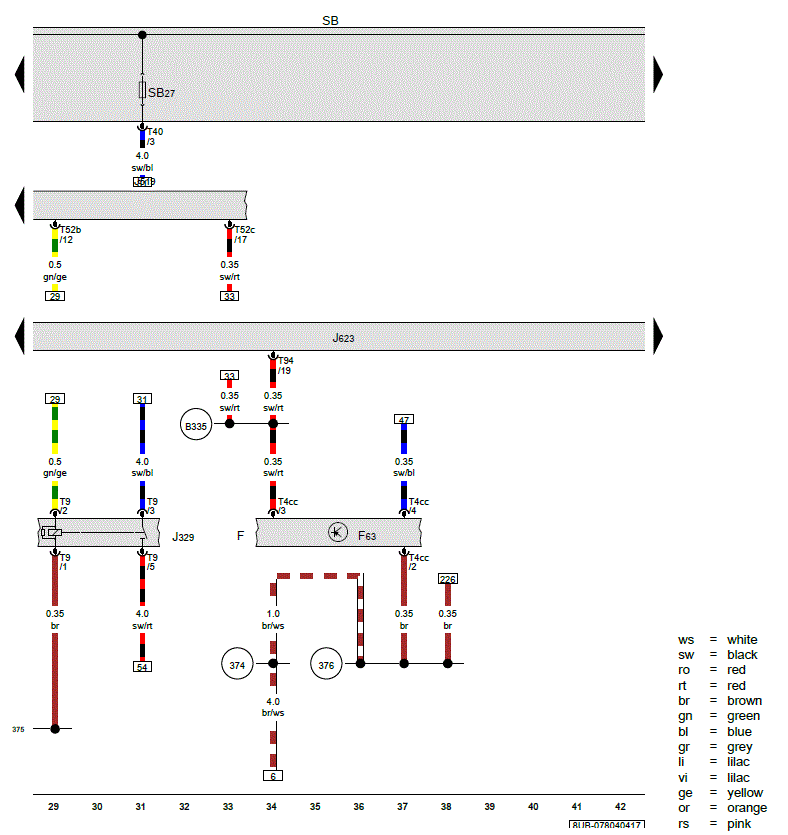

Brake Lamp Switch, Brake Pedal Switch, Terminal 15 Power Supply Relay, Vehicle Electrical System Control Module, Engine Control Module

F  Brake lamp switch

F63  Brake pedal switch

J329  Terminal 15 power supply relay

J519  Vehicle electrical system control module

J623  Engine control module

SB  Fuse panel B

SB27  Fuse 27 (on fuse panel B)

T4cc  4-pin connector

T9  9-pin connector

T40  40-pin connector, black

T52b  52-pin connector, naturally cloudy

T52c  52-pin connector, brown

T94  94-pin connector, black

(374) Ground connection 9 (in main wiring harness)

(375) Ground connection 10 (in main wiring harness)

(376) Ground connection 11 (in main wiring harness)

(B335) Connection 54 (in main wiring harness) 1
