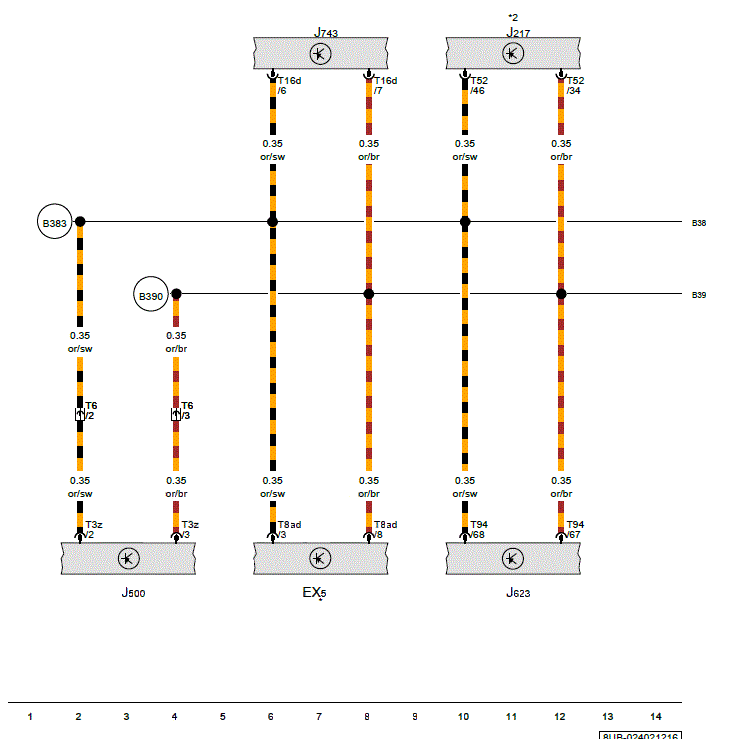

Powertrain Can Bus High Connection 1 (In Main Wiring Harness), Powertrain Can Bus Low Connection 1 (In Main Wiring Harness)
EX5 Interior rearview mirror
J217 Transmission control module
J500 Power steering control module
J623 Engine control module
J743 Dual-clutch transmission Mechatronic
T3z 3-pin connector
T6 6-pin connector, near the left front longitudinal member
T8ad 8-pin connector
T16d 16-pin connector
T52 52-pin connector
T94 94-pin connector
(B383) Powertrain CAN bus high connection 1 (in main wiring harness)
(B390) Powertrain CAN bus low connection 1 (in main wiring harness)
* Only for vehicles with high beam assist
*2 Only for vehicles with US equipment
