Sunlight Photo Sensor, Left Vent Temperature Sensor, Right Vent Temperature Sensor, CLIMATRONIC Control Module

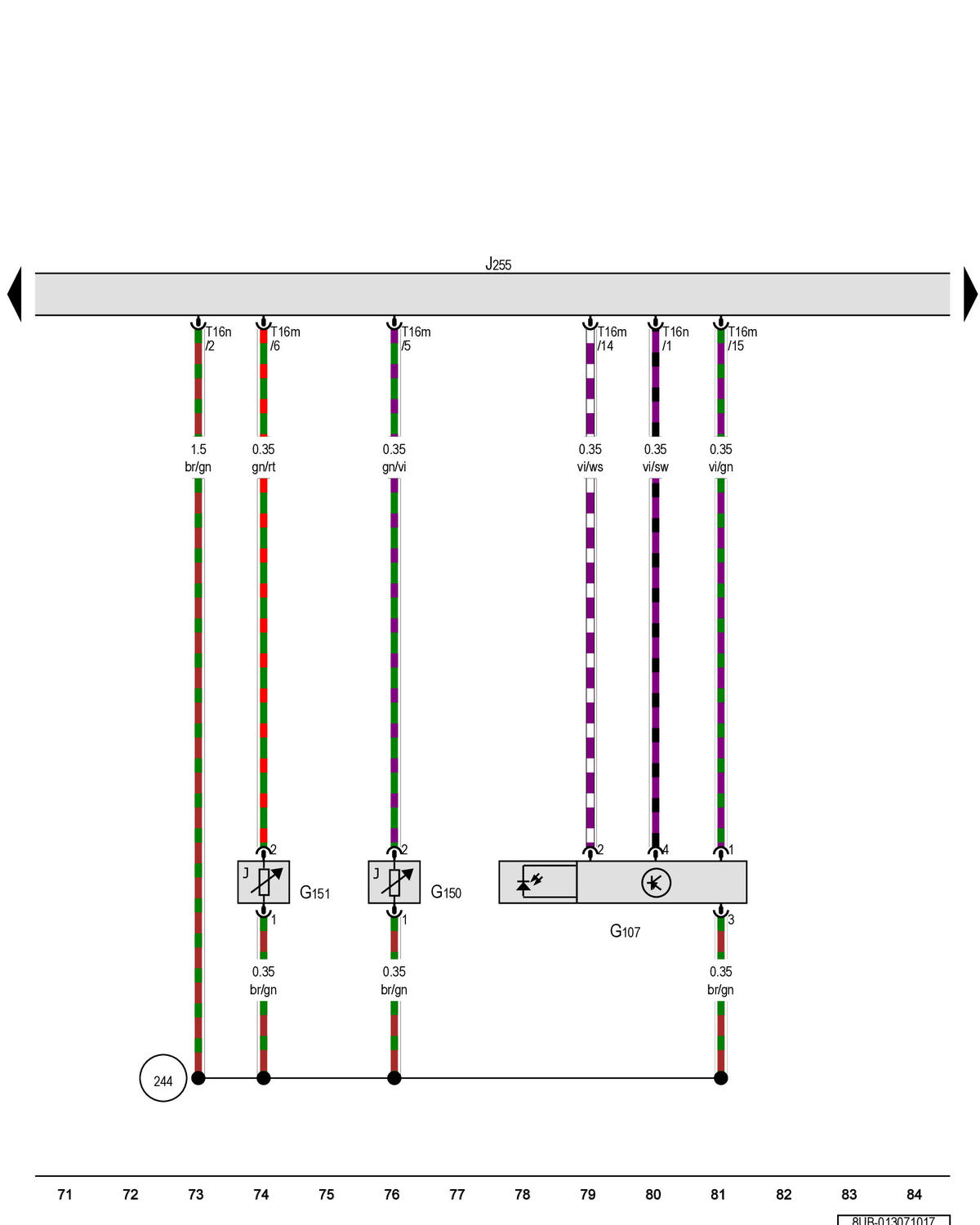

GWW8UB-013071017Courtesy of AUDI OF AMERICA, LLC

G107  Sunlight Photo Sensor

G150  Left Vent Temperature Sensor

G151  Right Vent Temperature Sensor

J255  Climatronic Control Module

T16m  16-Pin Connector

T16n  16-Pin Connector

(244) Sensor Ground Connection (in Climatronic Wiring Harness)
