Component Location Overview - Components Inside Front Passenger Compartment, Left Side Of Passenger Compartment

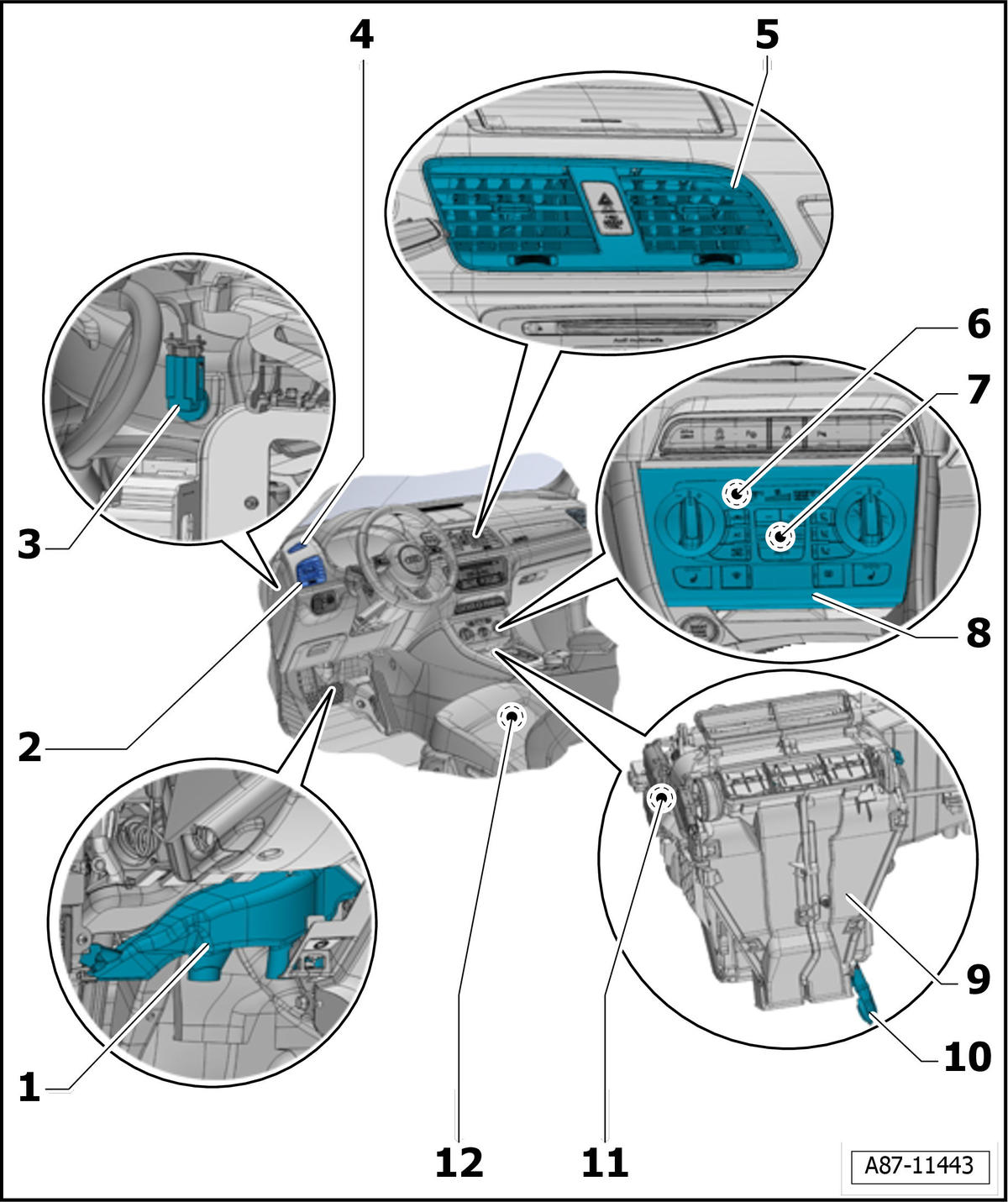

Fig 1: Components Inside Front Passenger Compartment, Left Side Of Passenger Compartment Location

Courtesy of AUDI OF AMERICA, LLC

1. Left Footwell Vent
   • Overview. Refer to OVERVIEW - AIR ROUTING AND AIR DISTRIBUTION IN PASSENGER COMPARTMENT, FRONT AIR GUIDES .
2. Left Instrument Panel Vent
   • Removing and installing. Refer to Instrument Panel Vent, Removing And Installing .
3. Left Vent Temperature Sensor -G150-
   • Only with an automatic climate control system
   • Check in the "Guided Fault Finding" function. Refer to Vehicle Diagnostic Tester.
   • Removing and installing. Refer to Left Vent Temperature Sensor -G150-, REMOVING AND INSTALLING .
4. Defroster Vent for the Left Side Window
   • Removing and installing. Refer to Side Defroster Vent, Removing And Installing .
5. Center Instrument Panel Vent
   • Removing and installing. Refer to Instrument Panel Vent, Removing And Installing .
6. Instrument Panel Temperature Sensor -G56-
   • Only with an automatic climate control system
   • Is integrated in the Climatronic Control Module -J255- and cannot be replaced separately
7. Interior Temperature Sensor Fan -V42-
   • Only with an automatic climate control system
   • Installed in the Climatronic Control Module -J255- control head
   • Removing and installing. Refer to INTERIOR TEMPERATURE SENSOR FAN, REMOVING AND INSTALLING .
8. A/C (Heater) Control Head
   • There are different versions. Refer to the Parts Information.

     Manual climate control system (heater without A/C system)

   • General Information. Refer to GENERAL INFORMATION FOR A/C Control Module -J301- CONTROL HEAD - MANUAL CLIMATE CONTROL SYSTEM .
   • A/C Control Module -J301- (Heater Control Module -J65-), removing and installing. Refer to DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING, A/C Control Module -J301- (Heater Control Module -J65-) .

     Automatic Climate Control System

   • General Information. Refer to GENERAL INFORMATION FOR Climatronic Control Module -J255- CONTROL HEAD - AUTOMATIC CLIMATE CONTROL SYSTEM .
   • Climatronic Control Module -J255-, removing and installing. Refer to DISPLAY AND CONTROL HEAD, REMOVING AND INSTALLING, Climatronic Control Module -J255- .
9. A/C Unit (View from Left)
   • There are different versions. Refer to the Parts Information.
   • Air distribution system block diagram. Refer to AIR INTAKE AND OUTLET OPENINGS .
   • Overview. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE MANIFOLD .
   • Removing and installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
10. Condensation Water Drain
    • Checking. Refer to CONDENSATION WATER DRAIN, CHECKING .
    • Removing and installing. Refer to CONDENSATION WATER DRAIN, REMOVING AND INSTALLING .
11. Left Footwell Vent Temperature Sensor -G261-
    • Only with an automatic climate control system
    • Removing and installing. Refer to Left Footwell Vent Temperature Sensor -G261-, REMOVING AND INSTALLING .
12. Left Front Seat
    • Equipment version with seat heating
    • There are different versions. Refer to the Parts Information.
    • The seat heating is set on the Climatronic Control Module -J255- /A/C Control Module -J301- (the Heater Control Module -J65-) control head
    • Check activation and function. Refer to SEAT HEATING .
    • Seat Heating, Servicing. Refer to Front Seat Covers and Cushions .
