Component Location Overview - Components Inside Front Passenger Compartment, Right Side Of Passenger Compartment

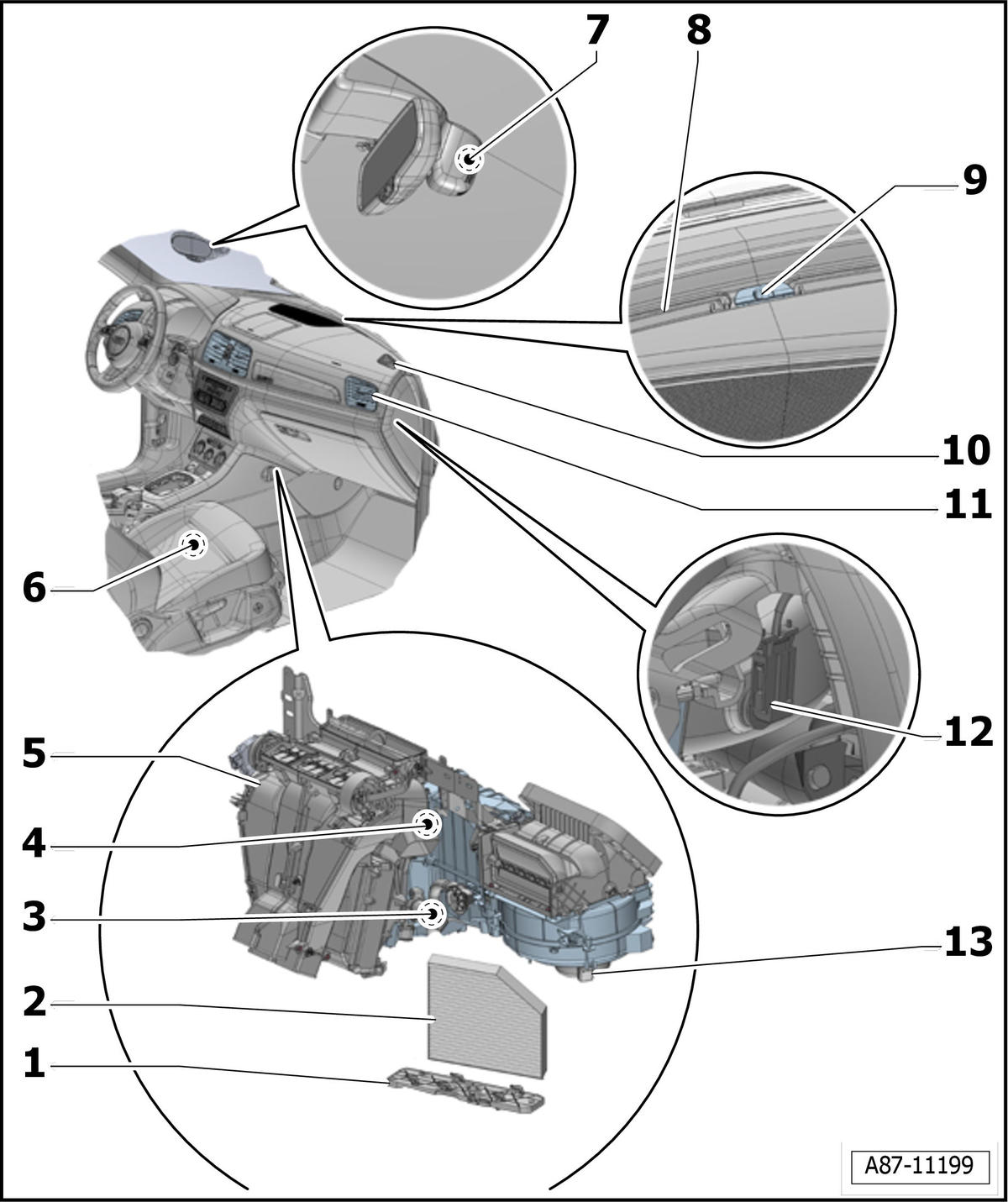

Fig 1: Components Inside Front Passenger Compartment, Right Side Of Passenger Compartment Location

Courtesy of AUDI OF AMERICA, LLC

Dust and Pollen Filter Shaft Cover
Dust and Pollen Filter
- There are different versions. Refer to the Parts Information.
- Notes on the version with activated charcoal element. Refer to DUST AND POLLEN FILTER INFORMATION .
- Replacement intervals. Refer to Maintenance Tables.
- Removing and installing. Refer to DUST AND POLLEN FILTER, REMOVING AND INSTALLING .
Evaporator Vent Temperature Sensor -G263-
- Removing and installing. Refer to Evaporator Vent Temperature Sensor -G263-, REMOVING AND INSTALLING .
Right Footwell Vent Temperature Sensor -G262-
- Only with an automatic climate control system
- Removing and installing. Refer to Right Footwell Vent Temperature Sensor -G262-, REMOVING AND INSTALLING .
A/C Unit (View from Right)
- There are different versions. Refer to the Parts Information.
- Air distribution system block diagram. Refer to AIR INTAKE AND OUTLET OPENINGS .
- Overview. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE MANIFOLD .
- Removing and installing. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
Right Front Seat
- Equipment version with seat heating
- There are different versions. Refer to the Parts Information.
- The seat heating is set on the Climatronic Control Module -J255- /A/C Control Module -J301- (the Heater Control Module -J65-) control head
- Check activation and function. Refer to SEAT HEATING .
- Seat Heating, Servicing. Refer to Front Seat Covers and Cushions .
Humidity Sensor -G355-
- There are different versions. Refer to the Parts Information.
- Installed in the mirror base
- To check. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function
- Removing and installing. Refer to Humidity Sensor -G355-, REMOVING AND INSTALLING .
  NOTE:
  The Climatronic Control Module -J255- control head currently only evaluates the Humidity Sensor -G355- on vehicles with an automatic climate control system.
Windshield Defroster Vent
- Removing and installing. Refer to Front Center Defroster Vent, Removing And Installing .
Sunlight Photo Sensor -G107-
- Only with an automatic climate control system
- To check the sunlight measured by the Sunlight Photo Sensor -G107- and calculated by the Climatronic Control Module -J255- control head, use the "Read measured values" function. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function.
- Removing and installing. Refer to Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING .
Defroster Vent for the Right Side Window
- Removing and installing. Refer to Side Defroster Vent, Removing And Installing .
Right Instrument Panel Vent
- Removing and installing. Refer to Instrument Panel Vent, Removing And Installing .
Right Vent Temperature Sensor -G151-
- Only with an automatic climate control system
- To check. Refer to Vehicle Diagnostic Tester in the "Guided Fault Finding" function
- Removing and installing. Refer to Right Vent Temperature Sensor -G151-, REMOVING AND INSTALLING .
Fresh Air Blower -V2-
- There are different versions. Refer to the Parts Information.
- Overview. Refer to OVERVIEW - ATTACHMENTS FOR HEATER AND A/C UNIT AND AIR INTAKE MANIFOLD, FRESH AIR BLOWER, COVER .
