Display And Control Head, Removing And Installing, A/C Control Module -J301- (Heater Control Module -J65-): Removing

-- Pay attention to the general information. Refer to GENERAL INFORMATION FOR A/C Control Module -J301- CONTROL HEAD - MANUAL CLIMATE CONTROL SYSTEM .

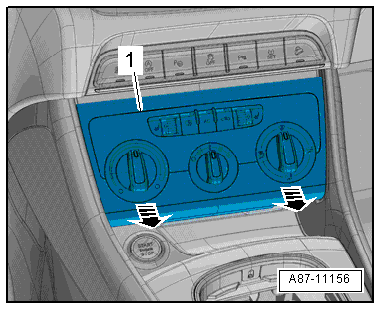

-- Remove the trim -1- for the A/C Control Module -J301- (the Heater Control Module -J65-) control head in direction of -arrows-.

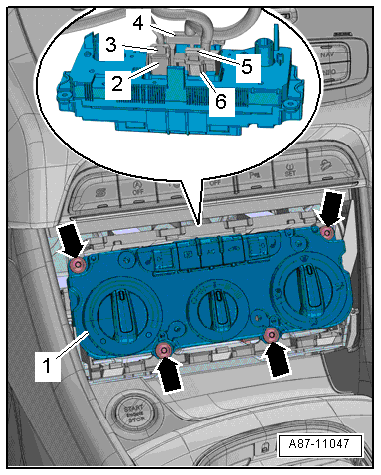

-- Remove the bolts -arrows-.

-- Disconnect the connector -4-.

-- Disconnect the connectors -2 and 6- by sliding the safety catches -3 and 5- upward and pressing the release.

-- Remove theA/C Control Module -J301- (the Heater Control Module -J65-) control head -1-.
