Overview - Display And Control Head, Manual Climate Control System (Heater Without A/C System)

A/C Control Module -J301- (Heater Control Module -J65-)

NOTE:

The following illustration shows a A/C Control Module -J301- display and control head as it was installed through MY 2013 (with a AC button). Changed A/C system control heads (recognizable by the labeling on the button A/C instead of AC ) are equipped for MY 2013 as a running change in production; ensure correct allocation. Refer to Parts Information.

For A/C Control Module -J301- A/C control heads with the part number from the index "B", the button labeling for switching the A/C compressor activation on and off was changed from AC to A/C .

For Heater Control Module -J65- heater control heads (installed on vehicles with a heater without an A/C system), the A/C or AC buttons do not exist.

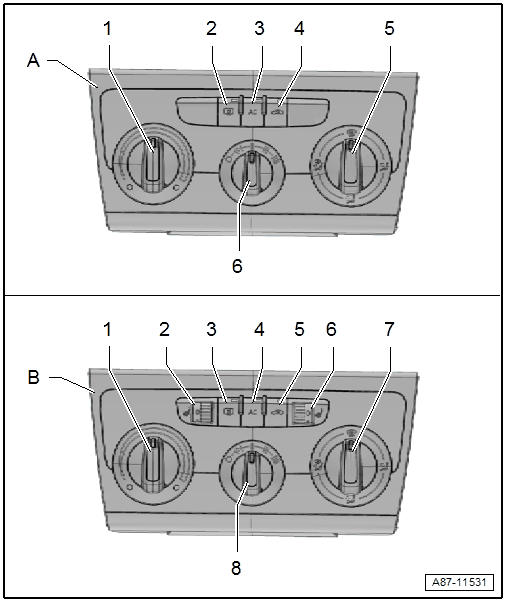

Fig 1: Display And Control Head, Manual Climate Control System (Heater Without A/C System) Exploded View

Courtesy of AUDI OF AMERICA, LLC

A - A/C Control Module -J301- Control Head for Vehicles without Seat Heating
2 - Temperature Setting Regulator
3 - Rear Window Defogger Button
- The "Rear window defogger on" function is selected when the LED is on.
4 -AC or A/C Button for A/C Compressor
- Illuminated LED indicates the "A/C compressor on" function is selected
- Different button labeling depending on the version of the A/C Control Module -J301-
- With a Heater Control Module -J65-, a cap is installed instead of this button
5 - Recirculating Air Mode Button
- Illuminated LED indicates the "recirculating air mode" function is selected.
- The "recirculated-air mode" function is canceled when setting the air distribution to "Defrost" (air to the windshield).
6 - Air Distribution Knob
7 - Knob for Fresh Air Blower -V2-
B - A/C Control Module -J301- Control Head for Vehicles with Seat Heating

1 - Temperature Setting Regulator
2 - Heated Driver Seat Adjuster
- The number on the thumbwheel indicates the selected level
3 - Rear Window Defogger Button
- Illuminated LEDs indicate the "Rear window defogger on" function is selected.
4 - AC or A/C Button for A/C Compressor
- Illuminated LED indicates the "A/C compressor on" function is selected
- Different button labeling depending on the version of the A/C Control Module -J301-
- With a Heater Control Module -J65-, a cap is installed instead of this button
5 - Recirculating Air Mode Button
- Illuminated LED indicates the "recirculating air mode" function is selected.
- The "recirculated-air mode" function is canceled when setting the air distribution to "Defrost" (air to the windshield).
6 - Heated Front Passenger Seat Adjuster
- The number on the thumbwheel indicates the selected level
7 - Air Distribution Knob
8 - Knob for Fresh Air Blower -V2-
