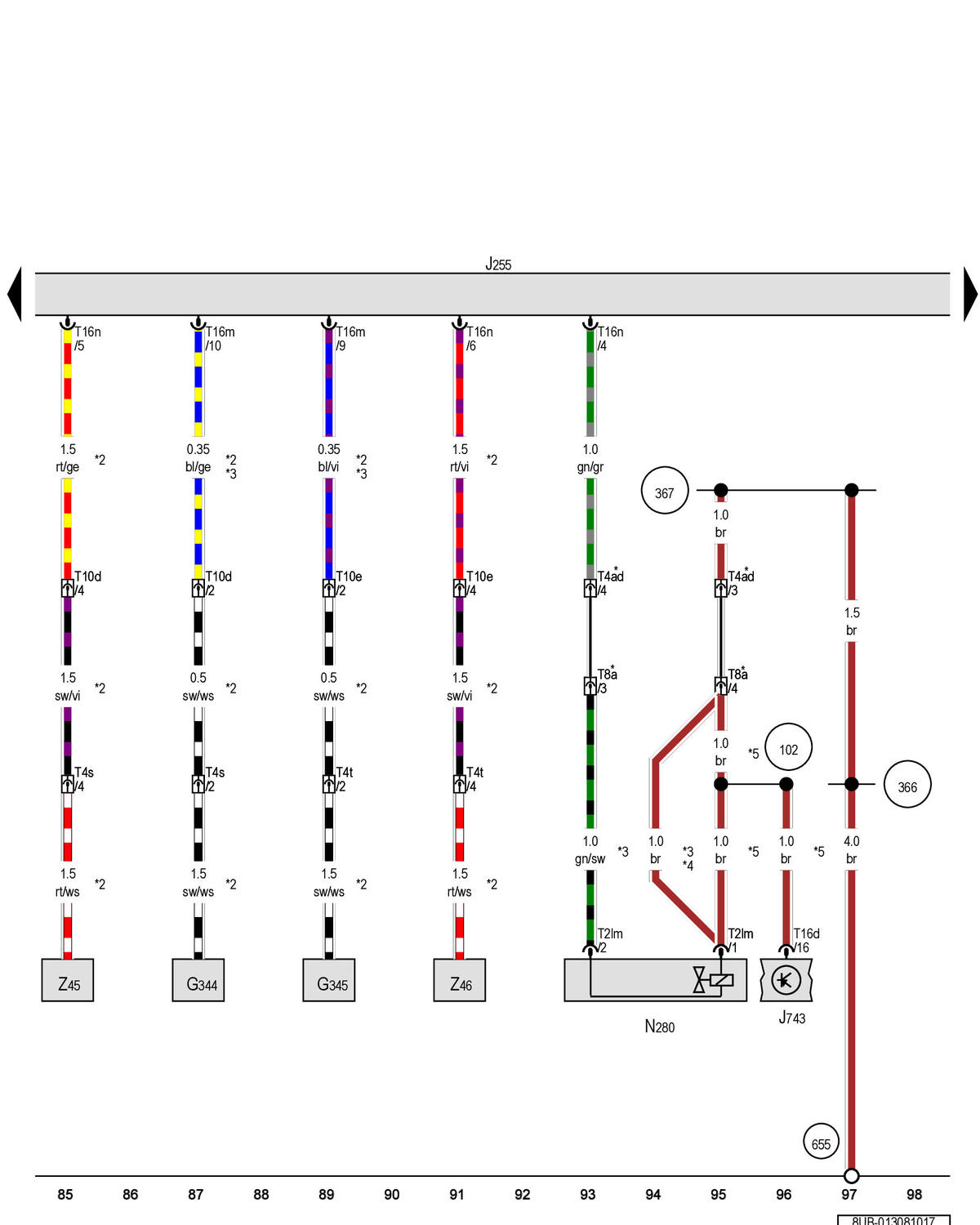

CLIMATRONIC Control Module, A/C Compressor Regulator Valve
G344 Left Front Seat Temperature Sensor
G345 Right Front Seat Temperature Sensor
J255 Climatronic Control Module
J743 Dual-Clutch Transmission Mechatronic
N280 A/C Compressor Regulator Valve
T2lm 2-Pin Connector, Black
T4ad 4-Pin Connector
T4s 4-Pin Connector
T4t 4-Pin Connector
T8a 8-Pin Connector, Near the Left Front Longitudinal Member
T10d 10-Pin Connector, In the Coupling Point for the Left Front Seat
T10e 10-Pin Connector, In the Coupling Point for the Right Front Seat
T16d 16-Pin Connector
T16m 16-Pin Connector
T16n 16-Pin Connector
Z45 Left Front Seat Heating Element
Z46 Right Front Seat Heating Element
(102) Ground Connection (in Transmission Wiring Harness)
(366) Ground Connection 1 (in Main Wiring Harness)
(367) Ground Connection 2 (in Main Wiring Harness)
(655) Ground Connection on Left Headlamp
* Depending on Equipment
*2 For Vehicles with Seat Heating
*3 The Color of the Wires Depends on Vehicle Equipment
*4 Only for Vehicles with a 2.5L Gasoline Engine
*5 For Vehicles with 2.5L Gasoline Engine
