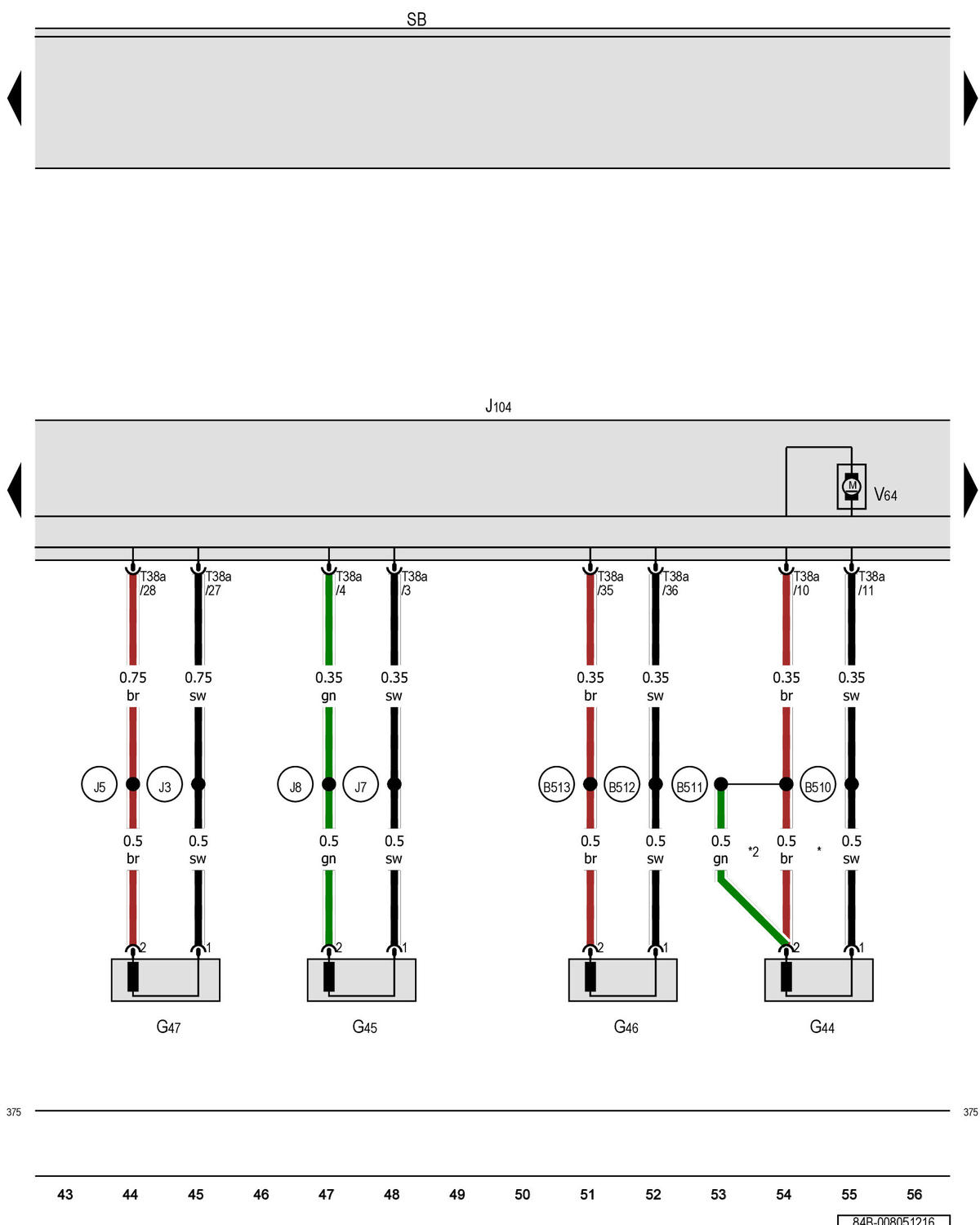

Right Rear Abs Wheel Speed Sensor, Right Front Abs Wheel Speed Sensor, Left Rear Abs Wheel Speed Sensor, Left Front Abs Wheel Speed Sensor, Abs Control Module, Fuse Panel B

Courtesy of AUDI OF AMERICA, LLC

G44  Right rear ABS wheel speed sensor

G45  Right front ABS wheel speed sensor

G46  Left rear ABS wheel speed sensor

G47  Left front ABS wheel speed sensor

J104  ABS control module

SB  Fuse panel B

T38a  38-pin connector

V64  ABS hydraulic pump

(375) Ground connection 10 (in main wiring harness)

(B510) Right rear speed sensor connection 1 (in interior wiring harness)

(B512) Right rear speed sensor connection 2 (in interior wiring harness)

(B513) Left rear speed sensor connection 1 (in interior wiring harness)

(B514) Left rear speed sensor connection 2 (in interior wiring harness)

(J3) Connection 1 (in ABS wiring harness)

(J5) Connection 2 (in ABS wiring harness)

(J7) Connection 3 (in ABS wiring harness)

(J8) Connection 4 (in ABS wiring harness)

*  Only for vehicles without electronic damping

*2  Only for vehicles with electronic damping
