ABS Control Module Connector End View (J104, T46a)

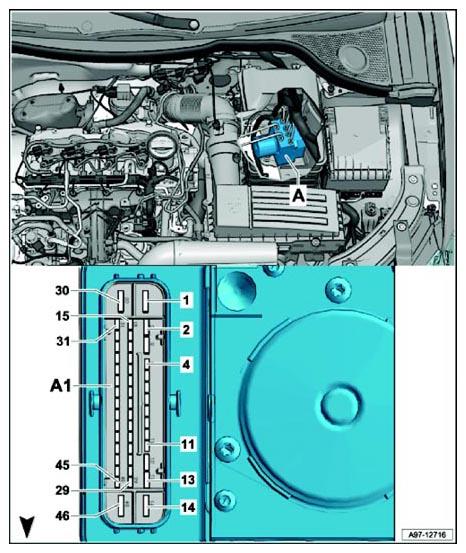

Fig 1: ABS Control Module Connector End View (J104, T46a)
Courtesy of AUDI OF AMERICA, LLC
A
ABS Control Module -J104-
A1
46-Pin Connector -T46a- black
