Fuel Pump (FP) Control Module Connector End View (J538, T6e)

Below reat seat.

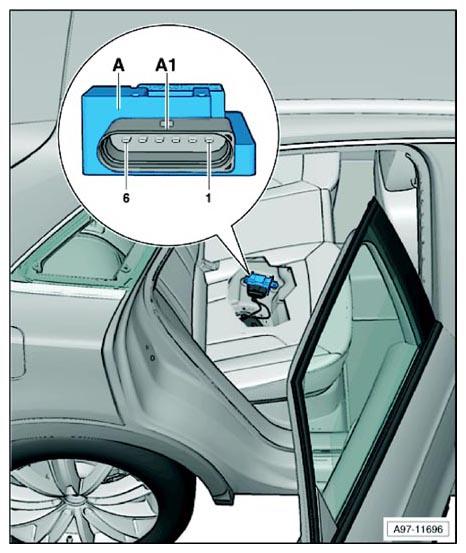

Fig 1: Fuel Pump (Fp) Control Module Connector End View (J538, T6e)

Courtesy of AUDI OF AMERICA, LLC

A	Fuel Pump (FP) Control Module -J538-
A1	6-Pin Connector -T6e-, black
