Parking Aid Control Module (J446) / Parallel Parking Assistance Control Module Connector End View (J791, T12f, T12e, T16b)

Behind side trim, in right luggage compartment.

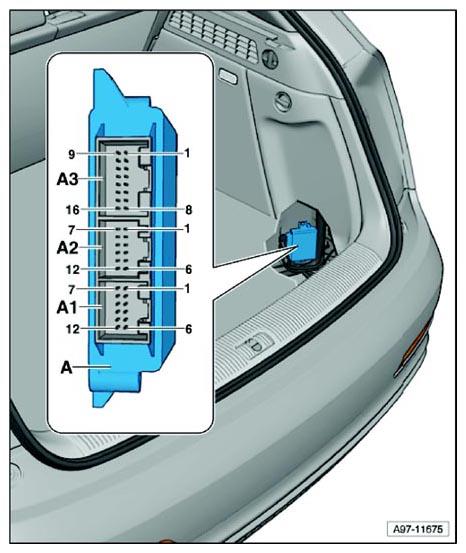

Fig 1: Parking Aid Control Module (J446) / Parallel Parking Assistance Control Module, Connector End View (J791, T12f, T12e, T16b)

Courtesy of AUDI OF AMERICA, LLC

A	Parking Aid Control Module -J446- / Parallel Parking Assistance Control Module, -J791-
A1	12-Pin Connector -T12f-, black
A2	12-Pin Connector -T12e-, brown
A3	16-Pin Connector -T16b-, black
