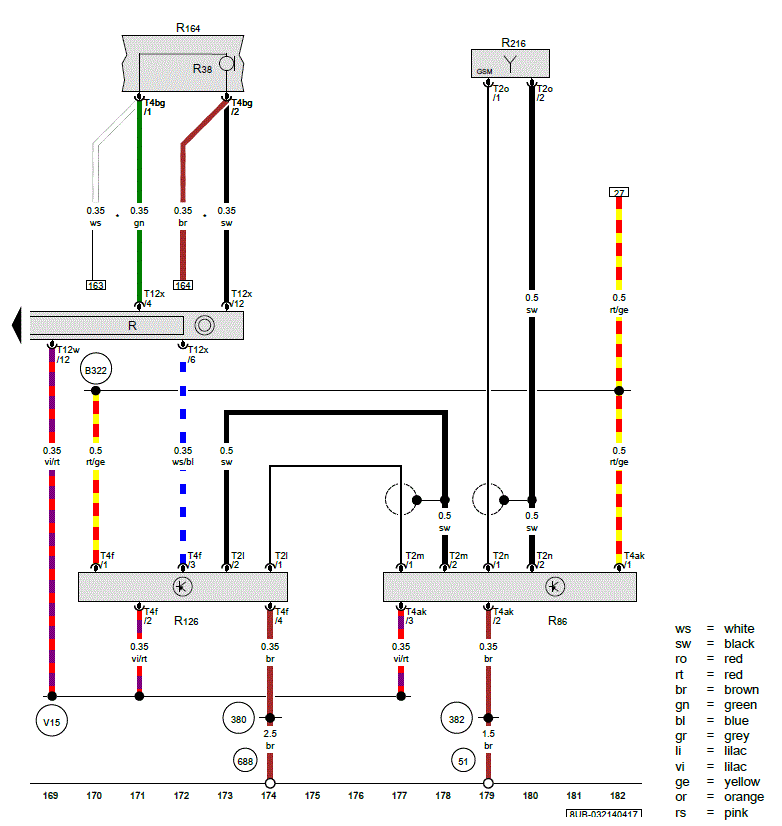

Control Module For Emergency Call Module And Communication Unit, Radio, Cellular Telephone Amplifier, Telephone BASEPLATE, Microphone Unit In Front Roof Module, Roof Antenna
R Radio
R38 Telephone microphone
R86 Cellular telephone amplifier
R126 Telephone baseplate
R164 Microphone unit in front roof module
R216 Roof antenna
T2l 2-Pin Connector, Purple
T2m 2-Pin Connector, Black
T2n 2-Pin Connector, Purple
T2o 2-Pin Connector, Purple
T4ak 4-Pin Connector, Black
T4bg 4-Pin Connector, Black
T4f 4-Pin Connector, Brown
T12w 12-Pin Connector, Gray
T12x 12-Pin Connector, Blue
(51) Ground connection in luggage compartment, right
(380) Ground connection 15 (in main wiring harness)
(382) Ground connection 17 (in main wiring harness)
(688) Ground connection 2 on center tunnel
(B322) Positive connection 8 (30a) (in main wiring harness)
(V15) Connection (in telephone wiring harness)
* Only for Vehicles with Emergency Call Module
