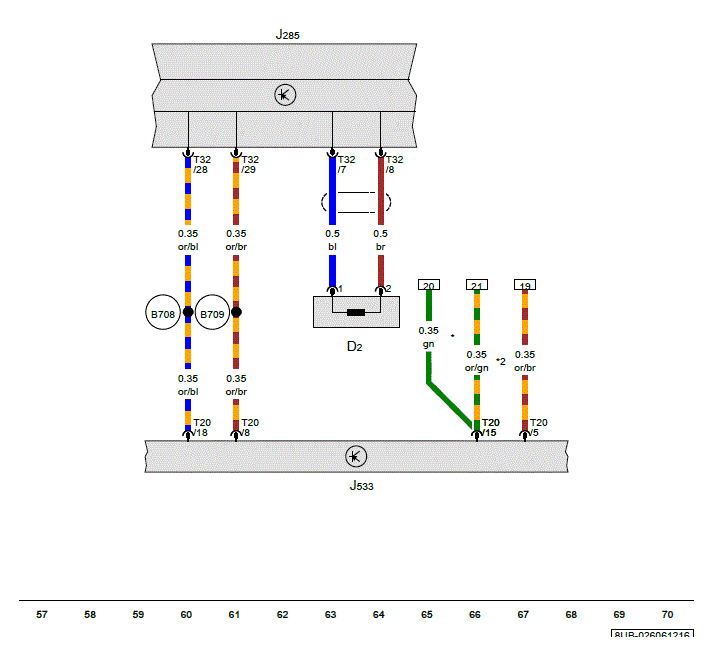

Anti-Theft Immobilizer Reader Coil, Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

D2  Anti-theft immobilizer reader coil

J285  Instrument cluster control module

J533  Data bus on board diagnostic interface

T20  20-pin connector, red

T32  32-pin connector, blue

(B708) Instrument cluster CAN bus high connection 1 (in main wiring harness)

(B709) Instrument cluster CAN bus low connection 1 (in main wiring harness)

*  from November 2016

*2  through October 2016
