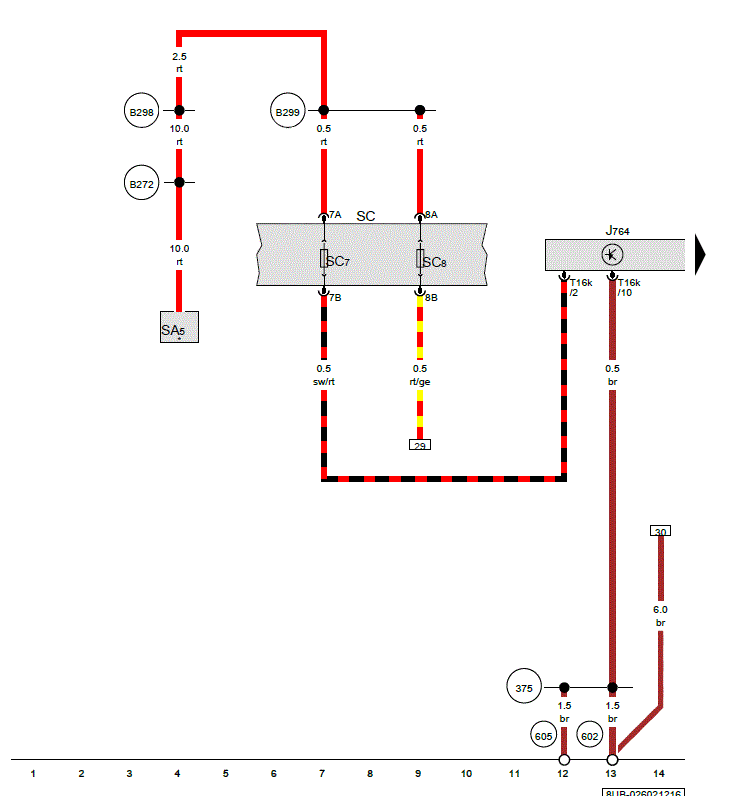

Electronic Steering Column Lock Control Module
J764 Electronic steering column lock control module
SC Fuse panel C
SC7 Fuse 7 (on fuse panel C)
SC8 Fuse 8 (on fuse panel C)
T16k 16-pin connector, black
(375) Ground connection 10 (in main wiring harness)
(602) Ground connection in left front footwell Type:VB, Slpdok:, Aim:VB602
(605) Ground connection on upper steering column Type:VB, Slpdok:, Aim:VB605
(B272) Positive connection (30) (in main wiring harness)
(B298) Positive connection 2 (30) (in main wiring harness)
(B299) Positive connection 3 (30) (in main wiring harness)
* Refer to applicable battery wiring diagram
