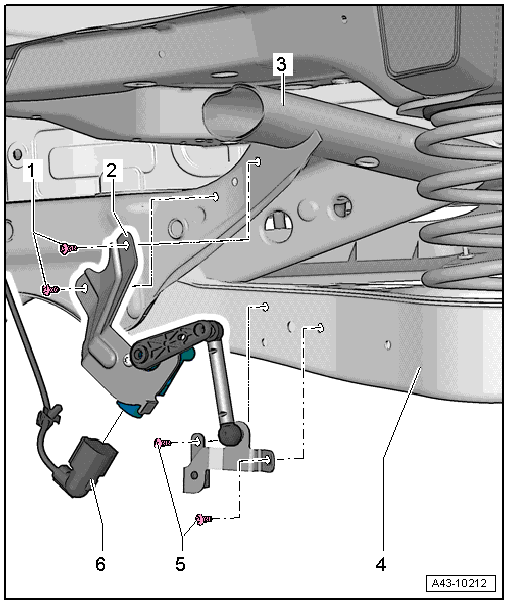

Overview - Rear Level Control System Sensor
NOTE:
The level control system sensor is only available as a replacement part together with the coupling rod and upper and lower retaining plates.
- Bolt
- 5 Nm
- Rear Level Control System Sensor --
- Complete with attachments
- The lever must face toward outside of vehicle
- Removing and Installing. Refer to LEFT/RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G76- / .
- If the Rear Level Control System Sensor -- was removed and installed, then the basic setting for the electronic damping must be performed. Refer to Vehicle Diagnostic Tester.
- Perform a basic setting on the headlamps after replacing them. Refer to Vehicle Diagnostic Tester.
- Subframe
- Lower Control Arm
- Bolt
- 5 Nm
- Connector
