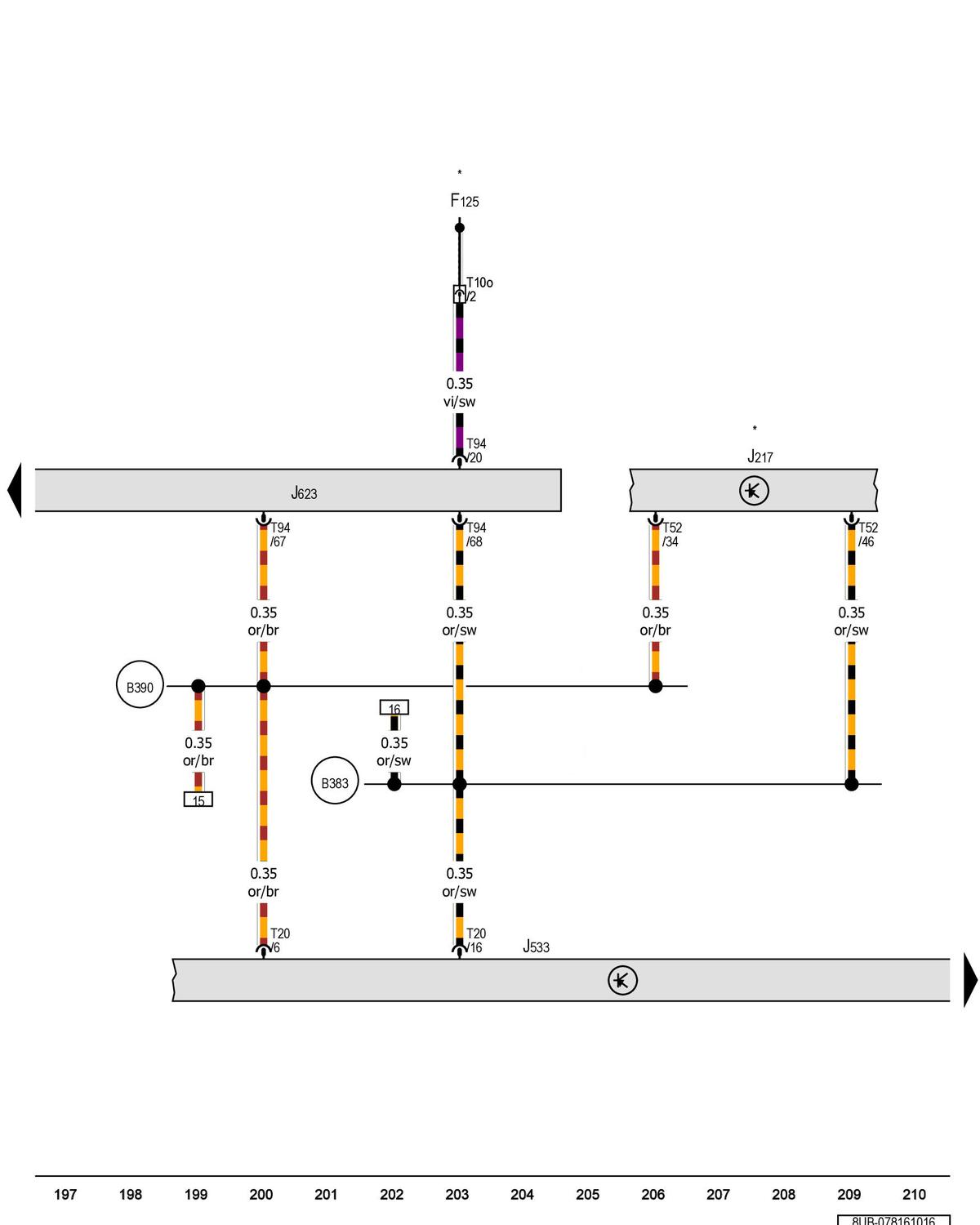

Transmission Control Module, Data Bus On Board Diagnostic Interface, Engine Control Module

F125  Multifunction transmission range switch

J217  Transmission control module

J533  Data bus on board diagnostic interface

J623  Engine control module

T10o  10-pin connector

T20  20-pin connector, red

T52  52-pin connector, black

T94  94-pin connector, black

(B383) Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) Powertrain CAN bus low connection 1 (in main wiring harness)

*  Refer to applicable wiring diagram for automatic transmission
