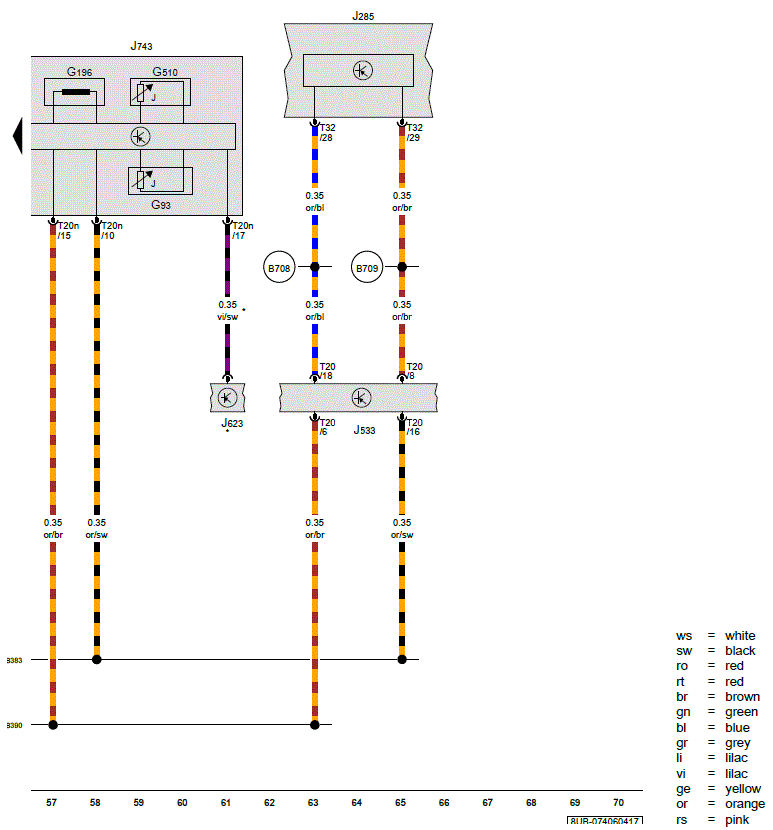

Transmission Fluid Temperature Sensor, Transmission Output Speed Sensor 2, Temperature Sensor In Control Module, Data Bus On Board Diagnostic Interface, Dual-Clutch Transmission MECHATRONIC

G93

Transmission fluid temperature sensor

G195

Transmission output speed sensor

G196

Transmission output speed sensor 2

G510

Temperature sensor in control module

J623

Engine control module Type:BT, Slpdok:, Aim:BTJ623

J743

Dual-clutch transmission Mechatronic Type:BT, Slpdok:, Aim:BTJ743

T20n

20-pin connector, black

Powertrain CAN bus high connection 1 (in main wiring harness)

Powertrain CAN bus high connection 2 (in main wiring harness)

Powertrain CAN bus low connection 1 (in main wiring harness)

Powertrain CAN bus low connection 2 (in main wiring harness)

*

Refer to applicable engine wiring diagram
